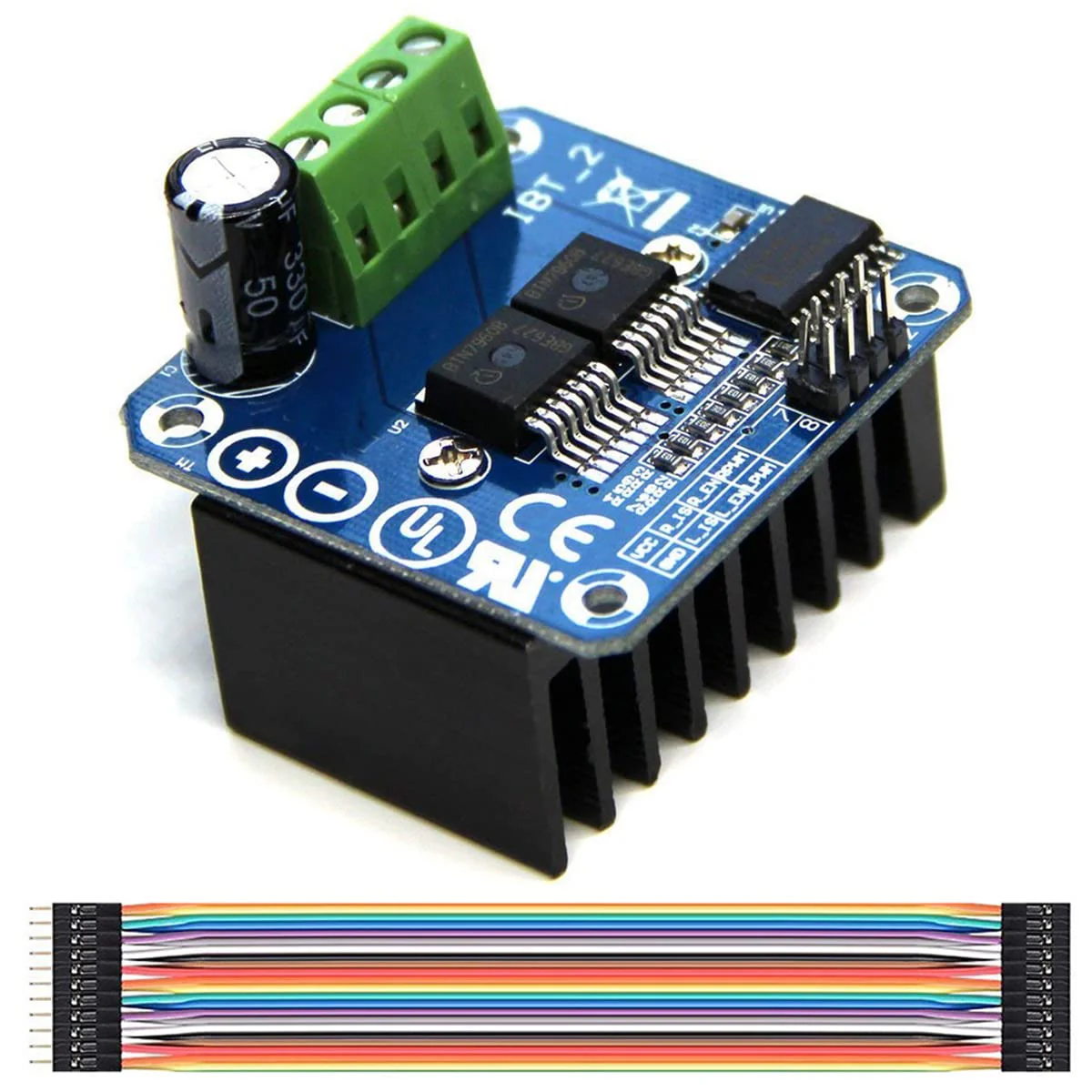

Youmile Motor Driver Module BTS7960B Double DC Stepper Motor Driver H-Bridge PWM Smart Car Driver Module for Arduino Current Limiting with DuPont Cable

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6
Product image 7

Youmile Motor Driver Module BTS7960B Double DC Stepper Motor Driver H-Bridge PWM Smart Car Driver Module for Arduino Current Limiting with DuPont Cable

Youmile Motor Driver Module BTS7960B Double DC Stepper Motor Driver H-Bridge PWM Smart Car Driver Module for Arduino Current Limiting with DuPont Cable

Youmile Motor Driver Module BTS7960B Double DC Stepper Motor Driver H-Bridge PWM Smart Car Driver Module for Arduino Current Limiting with DuPont Cable

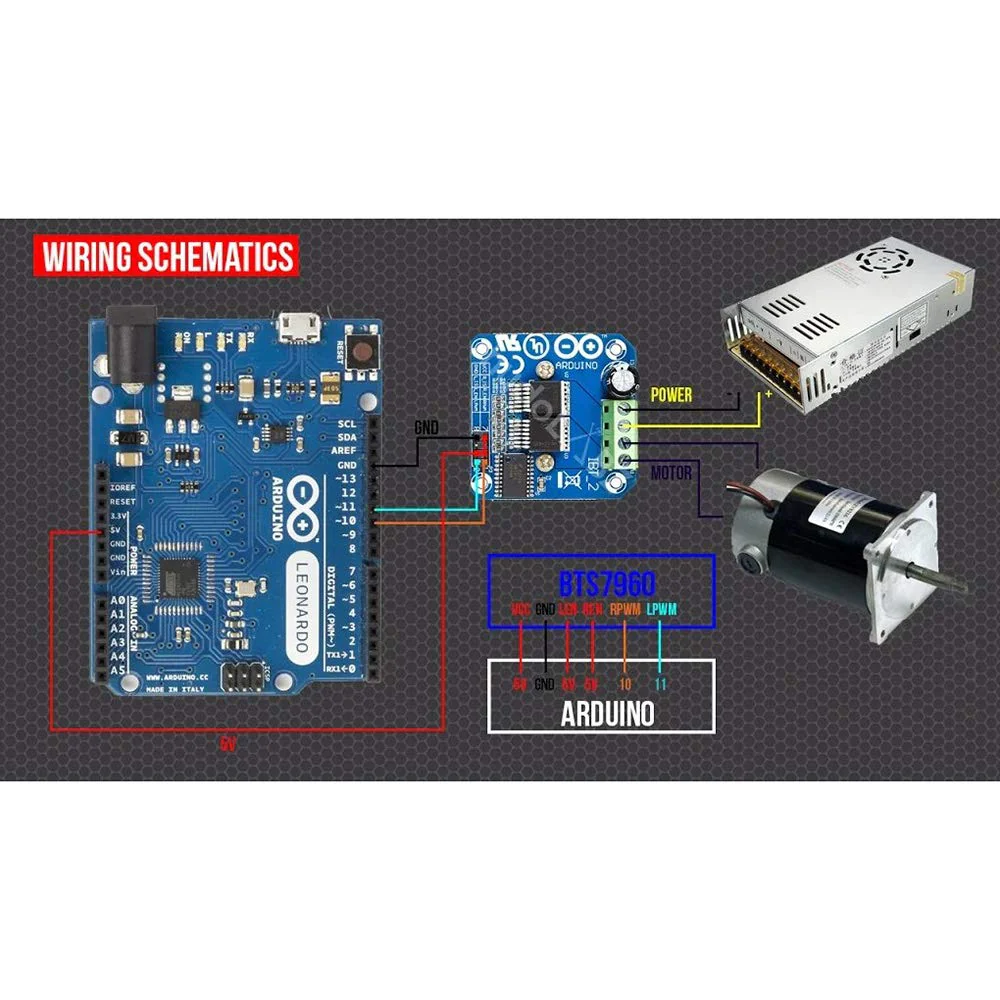

Description: Features: Double BTS7960 large current (43 A) H bridge driver; 5V isolate with MCU, and effectively protect MCU; 5V power indicator on board; voltage indication of motor driver output end; can solder heat sink; just need four lines from MCU to driver module (GND. 5 V. PWM1 PWM2); isolation chip 5 V power supply (can share with MCU 5 V); Able to reverse the motor forward, two PWM input frequency up to 25 kHZ; two heat flow passing through an error signal output; isolated chip 5V power supply (can be shared with the MCU 5V), can also use the on-board 5V supply; Specifications: Model: IBT-2 Input voltage: 6. V-27V Maximum Current: 43A Input level: 3.3-5V Control method: PWM or level Duty cycle: 0-100% Size: 4 x 5 x 1.2 cm/1.6 x 2.0 x 0.5inch; Input port: 1.RPWM: forward level or PWM signal input, active high 2.LPWM: Reverse level or PWM signal input, high active 3.R_R_. ENENENEN: forward drive , high- level enable, low level off 4.L_EN: reverse drive enable input, high-level enable, low level off 5.R_IS: forward drive current alarm output 6.L_IS: reverse drive current alarm output 7.VCC: +5 V power output, 5V power supply connection with the microcontroller 8.GND: signal common low end Package Included: 1 x BTS7960 43A High Power Motor Driver Module/Smart Car Driver Module For Arduino Current Limit 1 x 8Pin Dupont Wire Female to Male

Product Features

  • Isolate 5V with MCU and effectively protect MCU; 5V power indicator on board.
  • Voltage display of motor driver output end; can solder heat sink.
  • You only need four lines from the MCU to the driver module (GND. 5 V. PWM1 PWM2). Insulation chip 5V power supply (can be shared with MCU 5V).
  • Able to reverse the motor forward, two PWM input frequency up to 25KHz; two heat currents pass through an error signal output.
  • 5V power supply with isolated chip (can be shared with the 5V MCU), can also use the built-in 5V supply; the supply voltage 6V to 27V.
$42.70

Original: $122.00

-65%
Youmile Motor Driver Module BTS7960B Double DC Stepper Motor Driver H-Bridge PWM Smart Car Driver Module for Arduino Current Limiting with DuPont Cable—

$122.00

$42.70

Product Information

Shipping & Returns

Description

Youmile Motor Driver Module BTS7960B Double DC Stepper Motor Driver H-Bridge PWM Smart Car Driver Module for Arduino Current Limiting with DuPont Cable

Description: Features: Double BTS7960 large current (43 A) H bridge driver; 5V isolate with MCU, and effectively protect MCU; 5V power indicator on board; voltage indication of motor driver output end; can solder heat sink; just need four lines from MCU to driver module (GND. 5 V. PWM1 PWM2); isolation chip 5 V power supply (can share with MCU 5 V); Able to reverse the motor forward, two PWM input frequency up to 25 kHZ; two heat flow passing through an error signal output; isolated chip 5V power supply (can be shared with the MCU 5V), can also use the on-board 5V supply; Specifications: Model: IBT-2 Input voltage: 6. V-27V Maximum Current: 43A Input level: 3.3-5V Control method: PWM or level Duty cycle: 0-100% Size: 4 x 5 x 1.2 cm/1.6 x 2.0 x 0.5inch; Input port: 1.RPWM: forward level or PWM signal input, active high 2.LPWM: Reverse level or PWM signal input, high active 3.R_R_. ENENENEN: forward drive , high- level enable, low level off 4.L_EN: reverse drive enable input, high-level enable, low level off 5.R_IS: forward drive current alarm output 6.L_IS: reverse drive current alarm output 7.VCC: +5 V power output, 5V power supply connection with the microcontroller 8.GND: signal common low end Package Included: 1 x BTS7960 43A High Power Motor Driver Module/Smart Car Driver Module For Arduino Current Limit 1 x 8Pin Dupont Wire Female to Male

Product Features

  • Isolate 5V with MCU and effectively protect MCU; 5V power indicator on board.
  • Voltage display of motor driver output end; can solder heat sink.
  • You only need four lines from the MCU to the driver module (GND. 5 V. PWM1 PWM2). Insulation chip 5V power supply (can be shared with MCU 5V).
  • Able to reverse the motor forward, two PWM input frequency up to 25KHz; two heat currents pass through an error signal output.
  • 5V power supply with isolated chip (can be shared with the 5V MCU), can also use the built-in 5V supply; the supply voltage 6V to 27V.
