TP-Link Gigabit SFP to RJ45 Fiber Media Converter | Fiber to Ethernet Converter Multi - Mode Fiber, Gigabit
TP-Link Gigabit SFP to RJ45 Fiber Media Converter | Fiber to Ethernet Converter

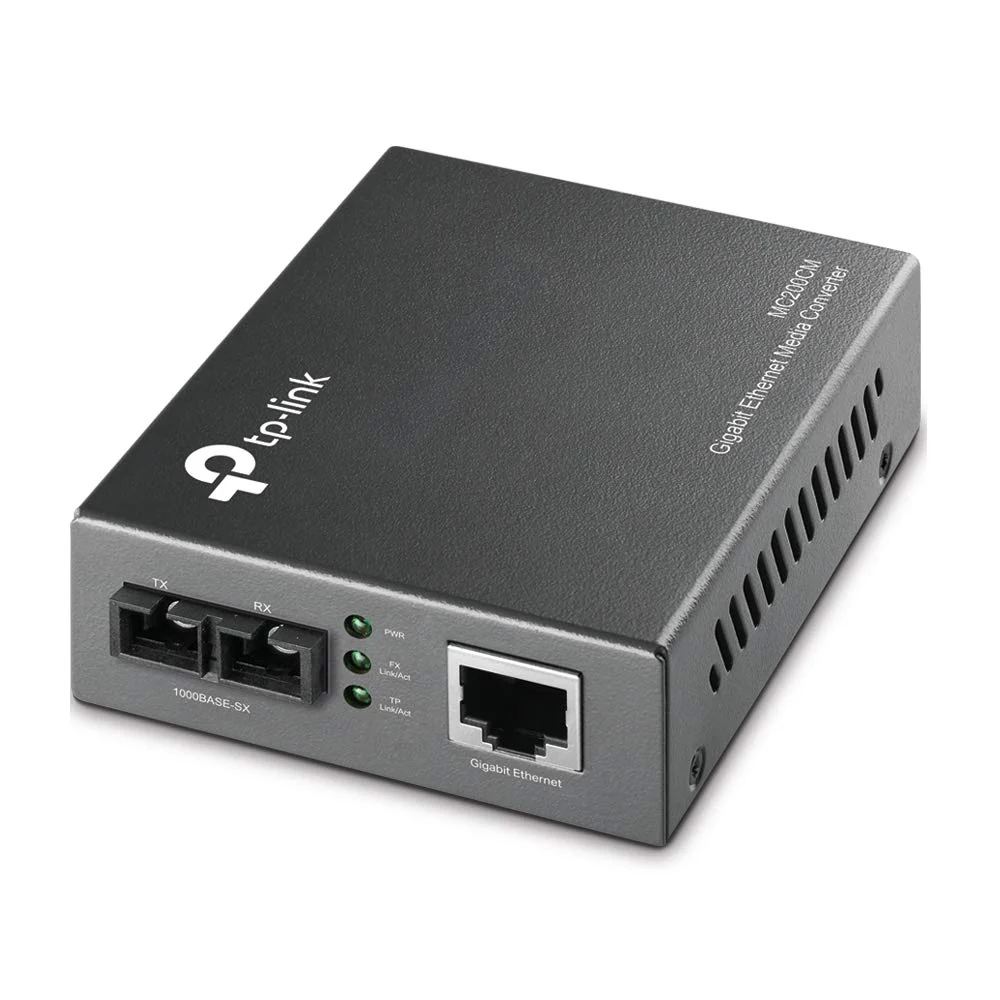

The MC200CM is a media converter designed to convert 1000BASE-SX fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX standards, the MC200CM is designed for use with multi-mode fiber cable utilizing the SC-Type connector. The MC200CM supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 850nm on both transmitting and receiving data. Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK's 19'system chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC200CM will transmit at extended fiber optic distances utilizing multi-mode fiber up to 0.55 kilometers(0.342 miles).
Product Features
- Designed to convert 1000BASE-SX fiber to 1000Base-T copper media or vice versa.
- Works at 1000Mbps in Full-Duplex mode for both TX port and FX port
- Supports auto MDI/MDIX for TX port and provides switch configuration of Force/Auto transfer mode for FX port
- Extends fiber distance up to 550m (1,800feet) using 50/125um Multi-Mode Fiber, 220m(720 feet) using 62.5/125um Multi-Mode Fiber
- Easy-to-view LED indicators provide status to monitor network activity easily
- External power supply. Wave Length: 850nm. Max Power Consumption: 1.66W.
- Works at 1000Mbps in Full-Duplex mode for both TX port and FX port
- Supports auto MDI/MDIX for TX port
- Provides switch configuration of Force /Auto transfer mode for FX port
- Extends fiber distance up to 0.5km(0.31 miles)
- Easy-to-view LED indicators provide status to monitor network activity easily
- External power supply
Product Information
Product Information
Shipping & Returns
Shipping & Returns
TP-Link Gigabit SFP to RJ45 Fiber Media Converter | Fiber to Ethernet Converter Multi - Mode Fiber, Gigabit
TP-Link Gigabit SFP to RJ45 Fiber Media Converter | Fiber to Ethernet Converter Multi - Mode Fiber, Gigabit
TP-Link Gigabit SFP to RJ45 Fiber Media Converter | Fiber to Ethernet Converter
The MC200CM is a media converter designed to convert 1000BASE-SX fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX standards, the MC200CM is designed for use with multi-mode fiber cable utilizing the SC-Type connector. The MC200CM supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 850nm on both transmitting and receiving data. Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK's 19'system chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC200CM will transmit at extended fiber optic distances utilizing multi-mode fiber up to 0.55 kilometers(0.342 miles).
Product Features
- Designed to convert 1000BASE-SX fiber to 1000Base-T copper media or vice versa.
- Works at 1000Mbps in Full-Duplex mode for both TX port and FX port
- Supports auto MDI/MDIX for TX port and provides switch configuration of Force/Auto transfer mode for FX port
- Extends fiber distance up to 550m (1,800feet) using 50/125um Multi-Mode Fiber, 220m(720 feet) using 62.5/125um Multi-Mode Fiber
- Easy-to-view LED indicators provide status to monitor network activity easily
- External power supply. Wave Length: 850nm. Max Power Consumption: 1.66W.
- Works at 1000Mbps in Full-Duplex mode for both TX port and FX port
- Supports auto MDI/MDIX for TX port
- Provides switch configuration of Force /Auto transfer mode for FX port
- Extends fiber distance up to 0.5km(0.31 miles)
- Easy-to-view LED indicators provide status to monitor network activity easily
- External power supply
Original: $167.00
-65%$167.00
$58.45Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
TP-Link Gigabit SFP to RJ45 Fiber Media Converter | Fiber to Ethernet Converter
The MC200CM is a media converter designed to convert 1000BASE-SX fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX standards, the MC200CM is designed for use with multi-mode fiber cable utilizing the SC-Type connector. The MC200CM supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 850nm on both transmitting and receiving data. Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK's 19'system chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC200CM will transmit at extended fiber optic distances utilizing multi-mode fiber up to 0.55 kilometers(0.342 miles).
Product Features
- Designed to convert 1000BASE-SX fiber to 1000Base-T copper media or vice versa.
- Works at 1000Mbps in Full-Duplex mode for both TX port and FX port
- Supports auto MDI/MDIX for TX port and provides switch configuration of Force/Auto transfer mode for FX port
- Extends fiber distance up to 550m (1,800feet) using 50/125um Multi-Mode Fiber, 220m(720 feet) using 62.5/125um Multi-Mode Fiber
- Easy-to-view LED indicators provide status to monitor network activity easily
- External power supply. Wave Length: 850nm. Max Power Consumption: 1.66W.
- Works at 1000Mbps in Full-Duplex mode for both TX port and FX port
- Supports auto MDI/MDIX for TX port
- Provides switch configuration of Force /Auto transfer mode for FX port
- Extends fiber distance up to 0.5km(0.31 miles)
- Easy-to-view LED indicators provide status to monitor network activity easily
- External power supply
