TB6612FNG Motor Driver Board, High Frequency Dual Controller for Projects, Easy to Install for Crafters, Pack of 2
TB6612FNG Motor Driver Board, High Frequency Dual Controller for Projects, Easy to Install for Crafters, Pack of 2

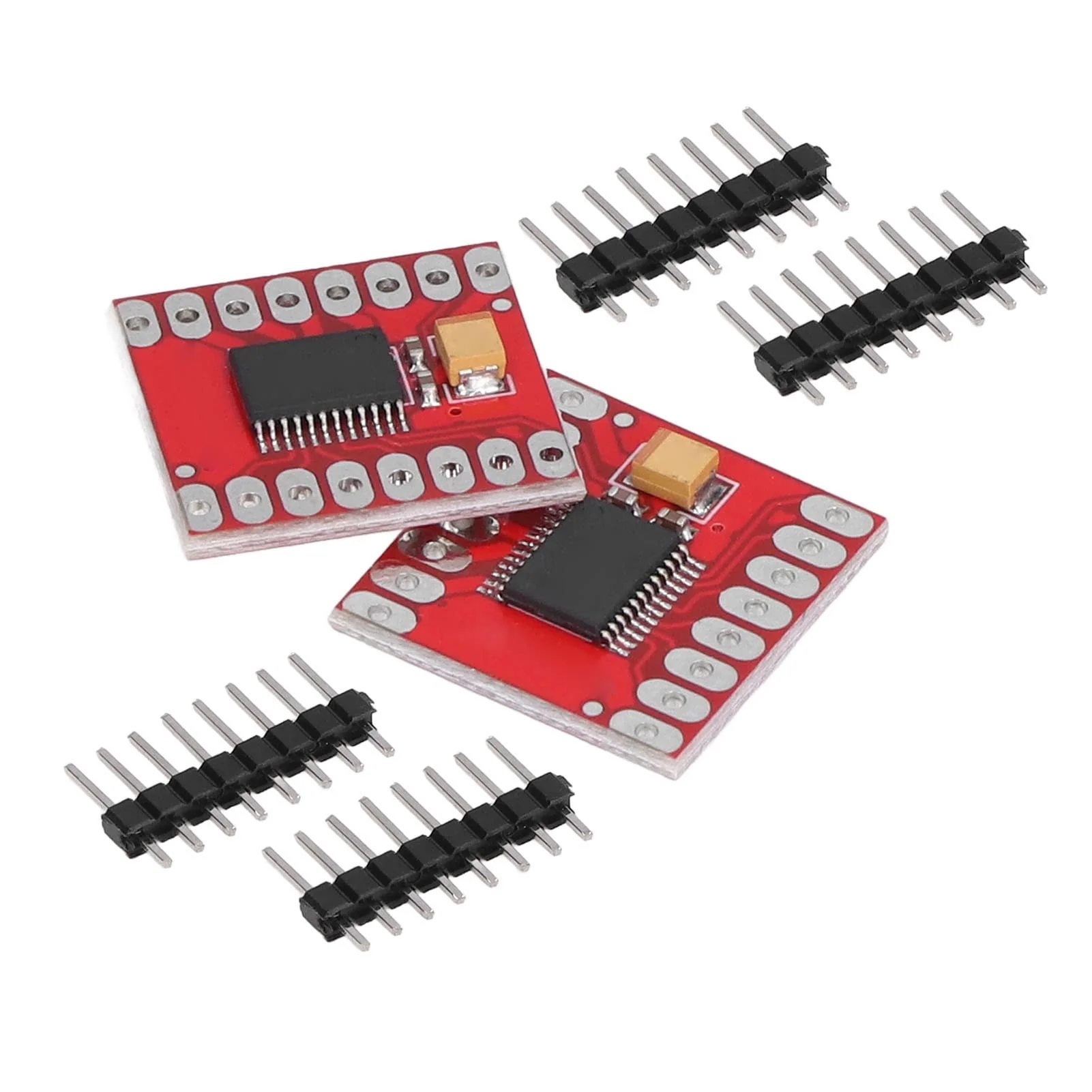

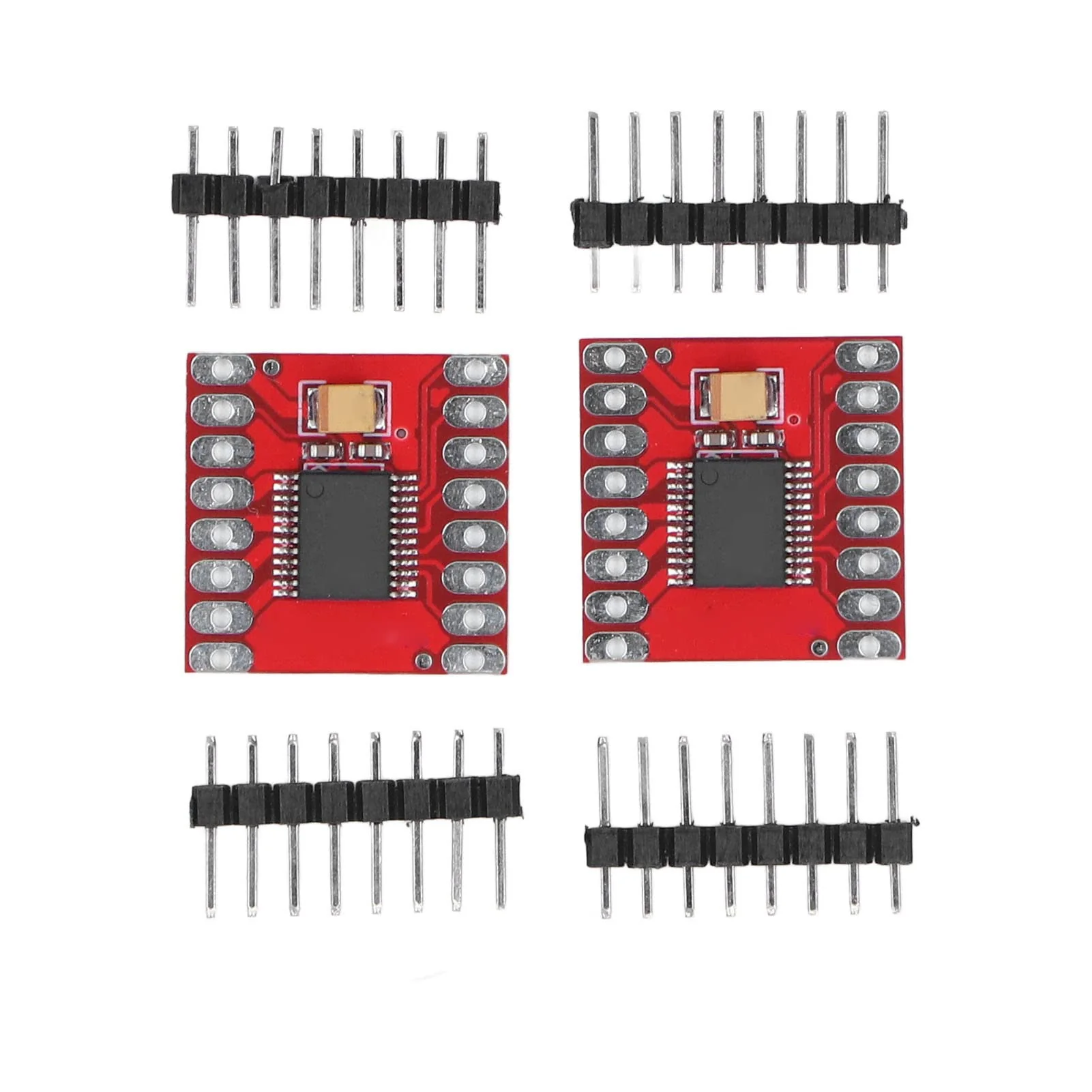

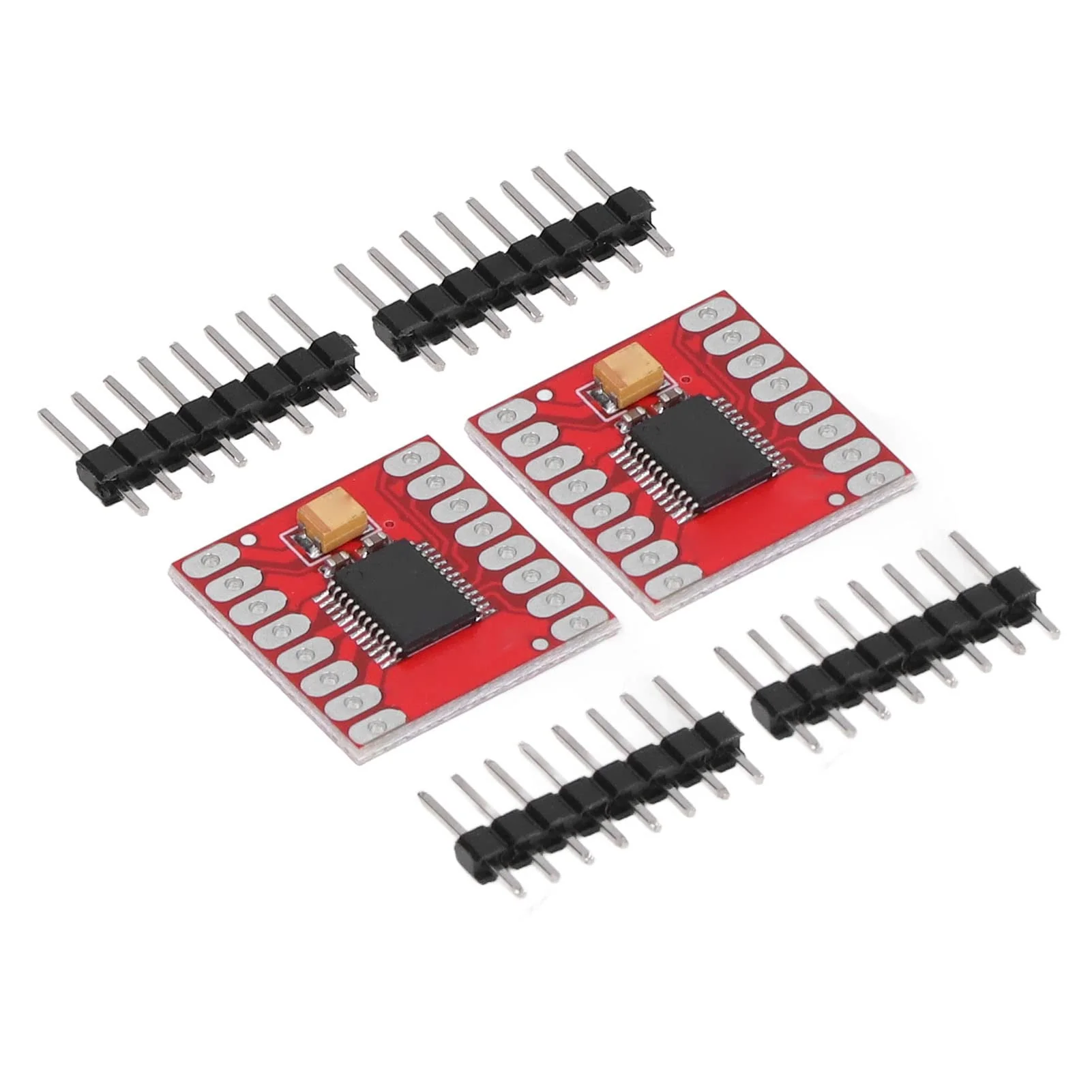

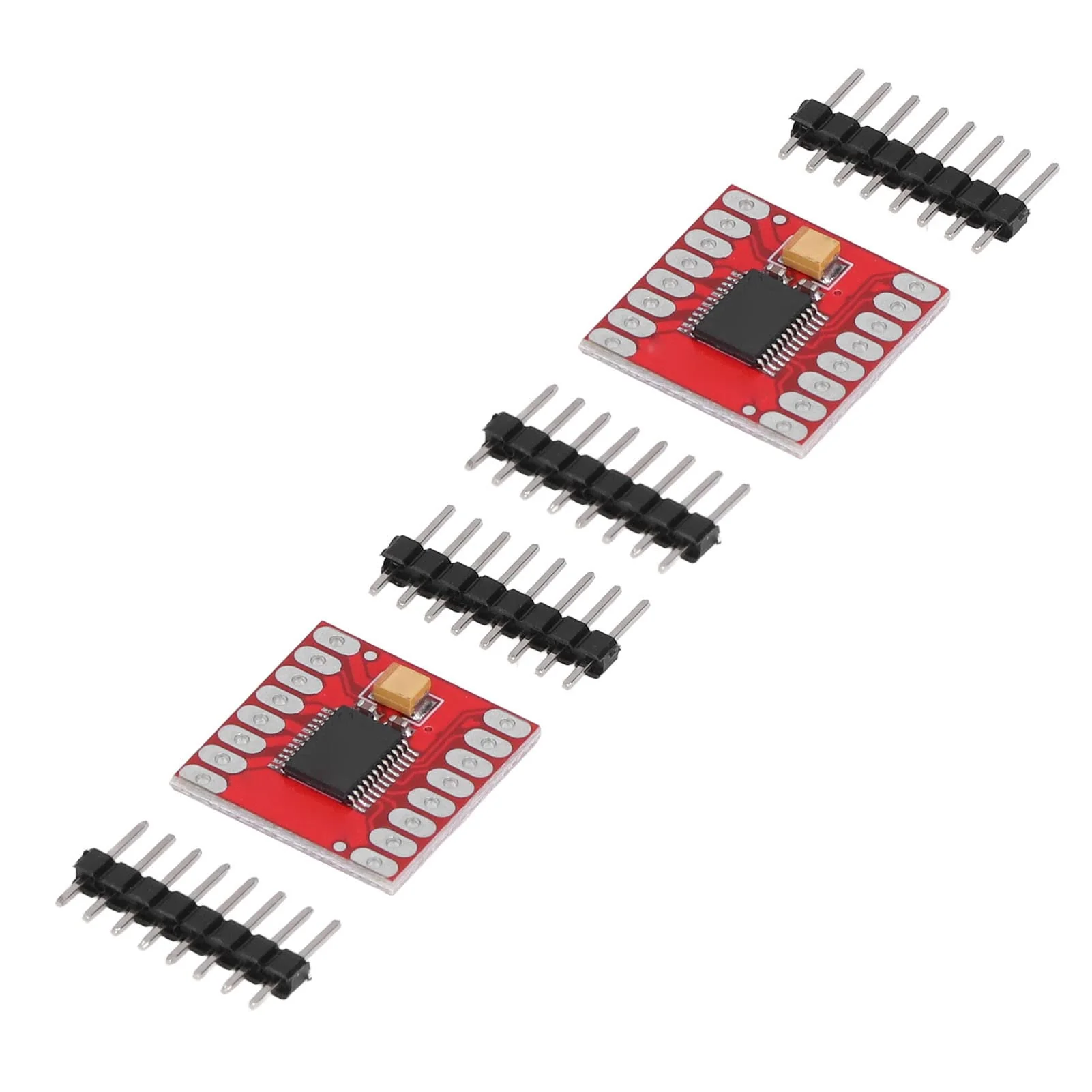

1. Motor Driver The dual motor driver module can be applied to DC motors and 4-wire stepper motors, and can also be used to drive 2 DC gear motors. 2. Safe working: has protection against over-current, short circuit, undervoltage lock and over temperature, with power saving mode. 3. Has H Bridge: TB6612FNG is a MOSFET based H bridge integrated circuit that is much more efficient than a transistor H bridge driver. 4. Easy to Use The peripheral circuit is simple and does not require external heat sink, works stably with high working efficiency. 5. Easy to Install Comes with a compact size and light weight, the convenient installation can be completed quickly within minutes. Technical data: Item Type:Motor Drive Module Material: PCB. Function: motor drive control Voltage: VM is connected to a 12V voltage, VCC is connected to a 5V voltage. Single H bridge output current: 1.5A STBY PIN: normal use when connected to high level, reset the motor to stop. Frequency: Drive frequency up to 100KHz Product size: approx. 21 x 21 mm / 0.83 x 0.83 inches. Package list: 2 x motor drive module. 4 x pin headers. Note: Please provide the power supply according to the voltage used. The use of other voltages can cause fires and product damage.
Product Features
- Excellent motor control: effortlessly control DC motors and 4-wire stepper motors with this versatile dual driver controller board. Ideal for a variety of engine applications.
- Robust protection: has protection mechanisms such as overcurrent, short circuit, undervoltage lock and over temperature. Ensures safe and reliable operation at all times.
- Efficient H-bridge design: Uses the advanced TB6612FNG MOSFET-based H bridge for superior performance. Provides higher efficiency compared to traditional transistor based drivers.
- User-friendly design: the simplified peripheral circuit does not require an external heat sink. Allows for quick and easy installation within minutes. Works reliably and with exceptional efficiency.
- Compact size: designed for space-saving installation without compromising performance. Lightweight and compact for convenient placement in different configurations.
