QUARKZMAN Metric Tap M5 x 0.8 H2 120 mm Extra Long Straight Flute Thread Cutting Machine Tap Thread Cutting Tool M5 x 0,8 x 120mm
QUARKZMAN Metric Tap M5 x 0.8 H2 120 mm Extra Long Straight Flute Thread Cutting Machine Tap Thread Cutting Tool
1 piece metric tap: Thread size: M5 x 0.8 (right-hand thread). Accuracy: H2. Total length: 120 mm / 4.7 inches (extra long). Square shaft width: 4 mm / 0.16 inches. Thread length: 25 mm / 0.98 inches. Number of flutes: 3 flutes Style: Straight Flute Tap Material: High Speed Steel 6542 (HSS 6542) Surface: Uncoated Descriptions: 1. Straight flute tap, clear thread without burrs, right hand thread. Provides fast downward chip removal for efficient tapping, suitable for machining through holes or shallow holes. 2. Taps create new threads or repair damaged or blocked threads. Widely used for most metals, iron sheet, copper, zinc, alloy steel, abrasive steel, A3 steel, stainless steel, etc. Use suitable tapping oil to achieve high-quality internal threads and durable taps. 3. Metric taps made of high speed steel 6542 provide high hardness, good toughness, wear resistance and excellent cutting performance. Uncoated taps consist only of the base substrate without additional coatings and are suitable for a variety of applications. 4. Machine taps are used with tapping machines, drills, milling machines and CNC machines. Recommended feed speed: normal steel: 6-15m/min; harder steel material: 5-10m/min; stainless steel: 2-7m/min; cast iron: 8-10m/min. Not recommended for manual and electric thread cutting. Tips: 1. Control the speed according to the material hardness. The higher the hardness, the slower the speed. High speed with low torque, low speed at high torque. The force must be uniform when tapping.
Product Features

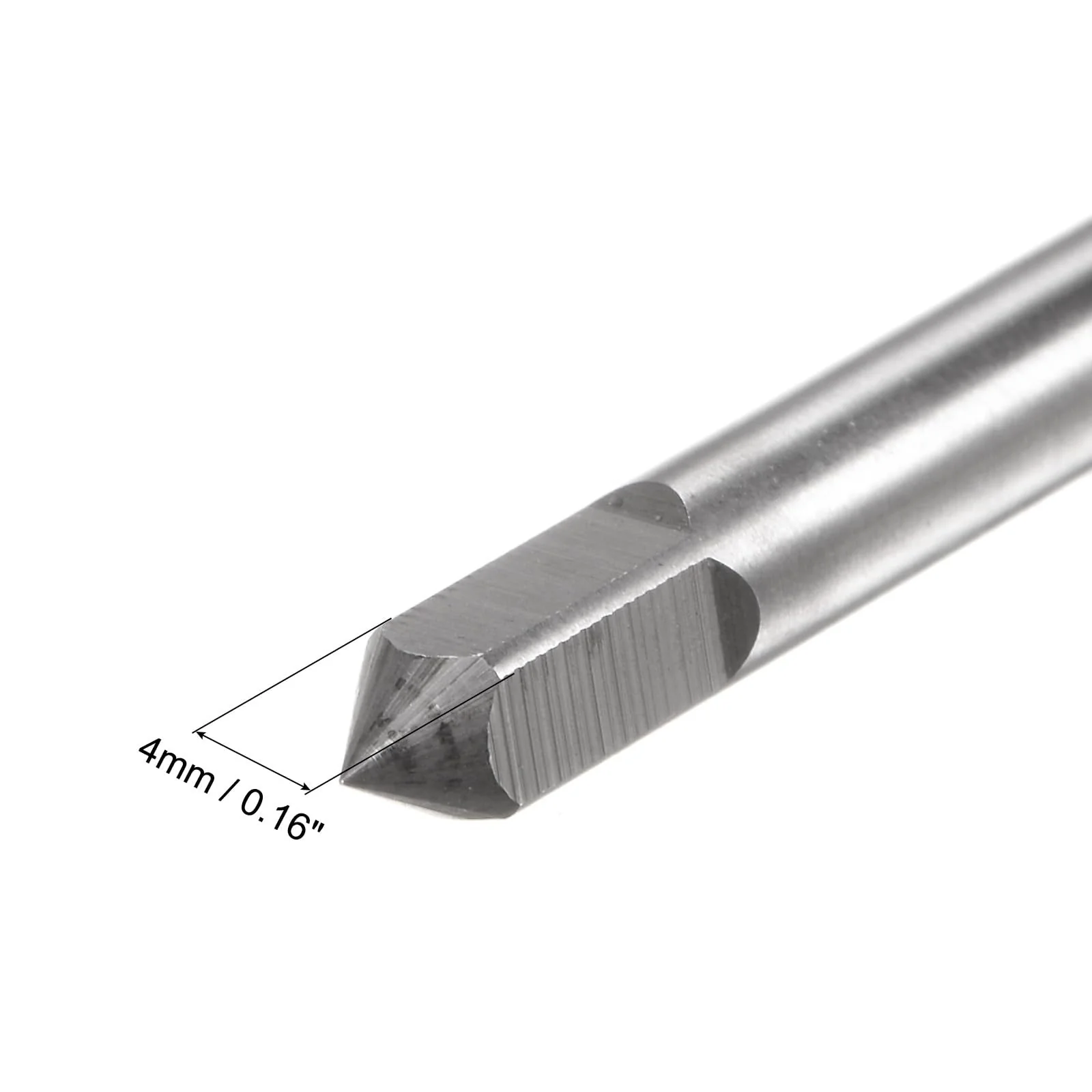

- Metric tap: thread size: M5 x 0.8 (right hand thread); accuracy: H2; total length: 120 mm/4.7 inches (extra long); square shank width: 4 mm/0.16 inches; thread length: 25 mm/0.98 inches; number of flutes: 3 flutes
- Straight flute tap: straight flute design, clear thread without burrs, right hand thread. Provides fast downward chip removal for efficient tapping, suitable for machining through holes or shallow holes.
- Wide applications: taps create new threads or repair damaged or blocked threads. Widely used for most metals, iron sheet, copper, zinc, alloy steel, abrasive steel, A3 steel, stainless steel. Use suitable tapping oil to achieve high-quality threads and durable taps.
- 6542 High Speed Steel Tap: Provide high hardness, good toughness, wear resistance and excellent cutting performance. Uncoated taps consist only of the base substrate without additional coatings and are suitable for a variety of applications.
- TIPS Machine taps are used with tapping machines, drills, automatic or milling machines. Drill the holes with a twist drill first and then use a tap. The thread cutting angle should be 90 degrees vertical and stable. Not recommended for manual and electric thread cutting.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
QUARKZMAN Metric Tap M5 x 0.8 H2 120 mm Extra Long Straight Flute Thread Cutting Machine Tap Thread Cutting Tool M5 x 0,8 x 120mm
QUARKZMAN Metric Tap M5 x 0.8 H2 120 mm Extra Long Straight Flute Thread Cutting Machine Tap Thread Cutting Tool M5 x 0,8 x 120mm
QUARKZMAN Metric Tap M5 x 0.8 H2 120 mm Extra Long Straight Flute Thread Cutting Machine Tap Thread Cutting Tool
1 piece metric tap: Thread size: M5 x 0.8 (right-hand thread). Accuracy: H2. Total length: 120 mm / 4.7 inches (extra long). Square shaft width: 4 mm / 0.16 inches. Thread length: 25 mm / 0.98 inches. Number of flutes: 3 flutes Style: Straight Flute Tap Material: High Speed Steel 6542 (HSS 6542) Surface: Uncoated Descriptions: 1. Straight flute tap, clear thread without burrs, right hand thread. Provides fast downward chip removal for efficient tapping, suitable for machining through holes or shallow holes. 2. Taps create new threads or repair damaged or blocked threads. Widely used for most metals, iron sheet, copper, zinc, alloy steel, abrasive steel, A3 steel, stainless steel, etc. Use suitable tapping oil to achieve high-quality internal threads and durable taps. 3. Metric taps made of high speed steel 6542 provide high hardness, good toughness, wear resistance and excellent cutting performance. Uncoated taps consist only of the base substrate without additional coatings and are suitable for a variety of applications. 4. Machine taps are used with tapping machines, drills, milling machines and CNC machines. Recommended feed speed: normal steel: 6-15m/min; harder steel material: 5-10m/min; stainless steel: 2-7m/min; cast iron: 8-10m/min. Not recommended for manual and electric thread cutting. Tips: 1. Control the speed according to the material hardness. The higher the hardness, the slower the speed. High speed with low torque, low speed at high torque. The force must be uniform when tapping.
Product Features
- Metric tap: thread size: M5 x 0.8 (right hand thread); accuracy: H2; total length: 120 mm/4.7 inches (extra long); square shank width: 4 mm/0.16 inches; thread length: 25 mm/0.98 inches; number of flutes: 3 flutes
- Straight flute tap: straight flute design, clear thread without burrs, right hand thread. Provides fast downward chip removal for efficient tapping, suitable for machining through holes or shallow holes.
- Wide applications: taps create new threads or repair damaged or blocked threads. Widely used for most metals, iron sheet, copper, zinc, alloy steel, abrasive steel, A3 steel, stainless steel. Use suitable tapping oil to achieve high-quality threads and durable taps.
- 6542 High Speed Steel Tap: Provide high hardness, good toughness, wear resistance and excellent cutting performance. Uncoated taps consist only of the base substrate without additional coatings and are suitable for a variety of applications.
- TIPS Machine taps are used with tapping machines, drills, automatic or milling machines. Drill the holes with a twist drill first and then use a tap. The thread cutting angle should be 90 degrees vertical and stable. Not recommended for manual and electric thread cutting.
Original: $113.00
-65%$113.00
$39.55Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
QUARKZMAN Metric Tap M5 x 0.8 H2 120 mm Extra Long Straight Flute Thread Cutting Machine Tap Thread Cutting Tool
1 piece metric tap: Thread size: M5 x 0.8 (right-hand thread). Accuracy: H2. Total length: 120 mm / 4.7 inches (extra long). Square shaft width: 4 mm / 0.16 inches. Thread length: 25 mm / 0.98 inches. Number of flutes: 3 flutes Style: Straight Flute Tap Material: High Speed Steel 6542 (HSS 6542) Surface: Uncoated Descriptions: 1. Straight flute tap, clear thread without burrs, right hand thread. Provides fast downward chip removal for efficient tapping, suitable for machining through holes or shallow holes. 2. Taps create new threads or repair damaged or blocked threads. Widely used for most metals, iron sheet, copper, zinc, alloy steel, abrasive steel, A3 steel, stainless steel, etc. Use suitable tapping oil to achieve high-quality internal threads and durable taps. 3. Metric taps made of high speed steel 6542 provide high hardness, good toughness, wear resistance and excellent cutting performance. Uncoated taps consist only of the base substrate without additional coatings and are suitable for a variety of applications. 4. Machine taps are used with tapping machines, drills, milling machines and CNC machines. Recommended feed speed: normal steel: 6-15m/min; harder steel material: 5-10m/min; stainless steel: 2-7m/min; cast iron: 8-10m/min. Not recommended for manual and electric thread cutting. Tips: 1. Control the speed according to the material hardness. The higher the hardness, the slower the speed. High speed with low torque, low speed at high torque. The force must be uniform when tapping.
Product Features
- Metric tap: thread size: M5 x 0.8 (right hand thread); accuracy: H2; total length: 120 mm/4.7 inches (extra long); square shank width: 4 mm/0.16 inches; thread length: 25 mm/0.98 inches; number of flutes: 3 flutes
- Straight flute tap: straight flute design, clear thread without burrs, right hand thread. Provides fast downward chip removal for efficient tapping, suitable for machining through holes or shallow holes.
- Wide applications: taps create new threads or repair damaged or blocked threads. Widely used for most metals, iron sheet, copper, zinc, alloy steel, abrasive steel, A3 steel, stainless steel. Use suitable tapping oil to achieve high-quality threads and durable taps.
- 6542 High Speed Steel Tap: Provide high hardness, good toughness, wear resistance and excellent cutting performance. Uncoated taps consist only of the base substrate without additional coatings and are suitable for a variety of applications.
- TIPS Machine taps are used with tapping machines, drills, automatic or milling machines. Drill the holes with a twist drill first and then use a tap. The thread cutting angle should be 90 degrees vertical and stable. Not recommended for manual and electric thread cutting.
