Optical Fingerprint Reader Sensor Module Door Lock Access Control Red Light for Arduino Mega2560 UNO R3 Geekstory
Optical Fingerprint Reader Sensor Module Door Lock Access Control Red Light for Arduino Mega2560 UNO R3 Geekstory

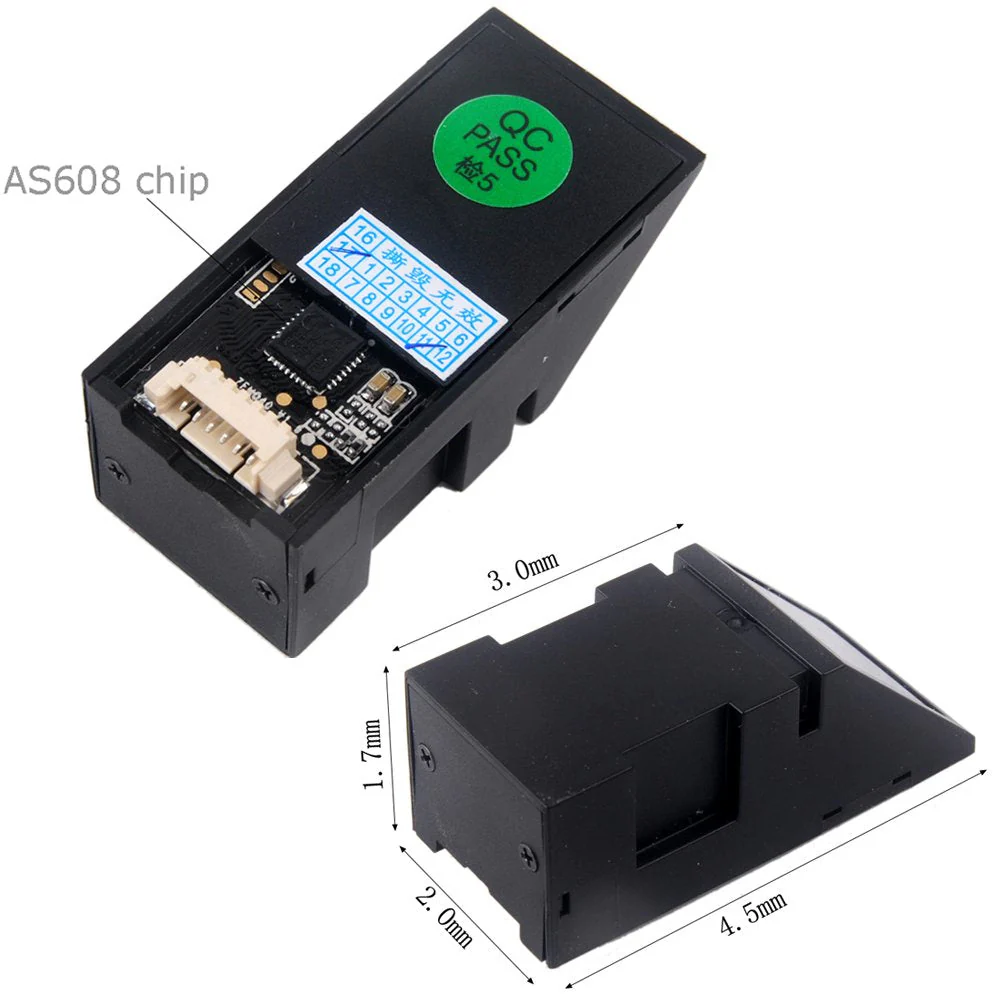

Specifications: Model type: O40 Supply voltage: DC 3.8 ~ 7.0V Backlight color: red Light way: long light / flashing Supply current: Operating current: <60mA Peak current: <85mA Fingerprint image input time: <0.5 seconds Window area: 15 × 17mm Matching method: Comparison method (1: 1); Search method (1: N) Characteristic file: 384 bytes Template file: 786 bytes Storage capacity: 240 Security Level: 3 (from low to high: 1,2,3,4,5) False Acceptance Rate (FAR): <0.001% (Security Level 3) Refusal rate (FRR): <1.0% (security level is 3) Search time: <220 ms (1: 240 average) Host interface: UART (TTL logic level) Communication baud rate (UART): (9600 × N) bps Where N = 1 ~ 12 (default N = 6, ie 57600bps) Working temperature: -30 °C to +70 °C Storage Temperature: -40 °C to +85 °C Applications: Fingerprint door locks, safes, guns, financial and other security areas; Access control systems, industrial computers, POS machines, driving training, attendance and other areas of identity; Private clubs, management software, licensing and other management areas; Medicare recipients, pensioners receive, fingerprint payment and other financial areas. Read more Functions 1. Fingerprint collection 2. Fingerprint registration 3. Fingerprint comparison 4. Fingerprint search Read more Fingerprint sensor 2560 connection Fingerprint Module works with 2560 Connection: pin 10 is IN from sensor (GREEN wire) pin 11 is OUT from sensor (WHITE wire) 5V connect sensor (Red wire) GND connect sensor (Black wire) Fingerprint sensor R3 connection Fingerprint Module works with R3 Connection: pin 2 is IN from sensor (GREEN wire) pin 3 is OUT from sensor (WHITE wire) 5V connect sensor (Red wire) GND connect sensor (Black wire) Fingerprint sensor It can work with any microcontroller which with serial port: such as compatible with arduino, 51, avr, stm32, pic, arm, msp430 Read more About US ——Professional service, Integrity operation, Customer first. ——We have always cared about the customer experience and improve the product function details. ——We will be responsible for any damages or losses incurred in the shipping process. ——We try our best to provide the most professional service for each customer. Read more
Product Features
- The product documentation link cannot be displayed. If you need technical documentation, please click Geekstory(you can find "Sold by Geekstory" under Buy Now button), in the new page, click Ask a question to email us

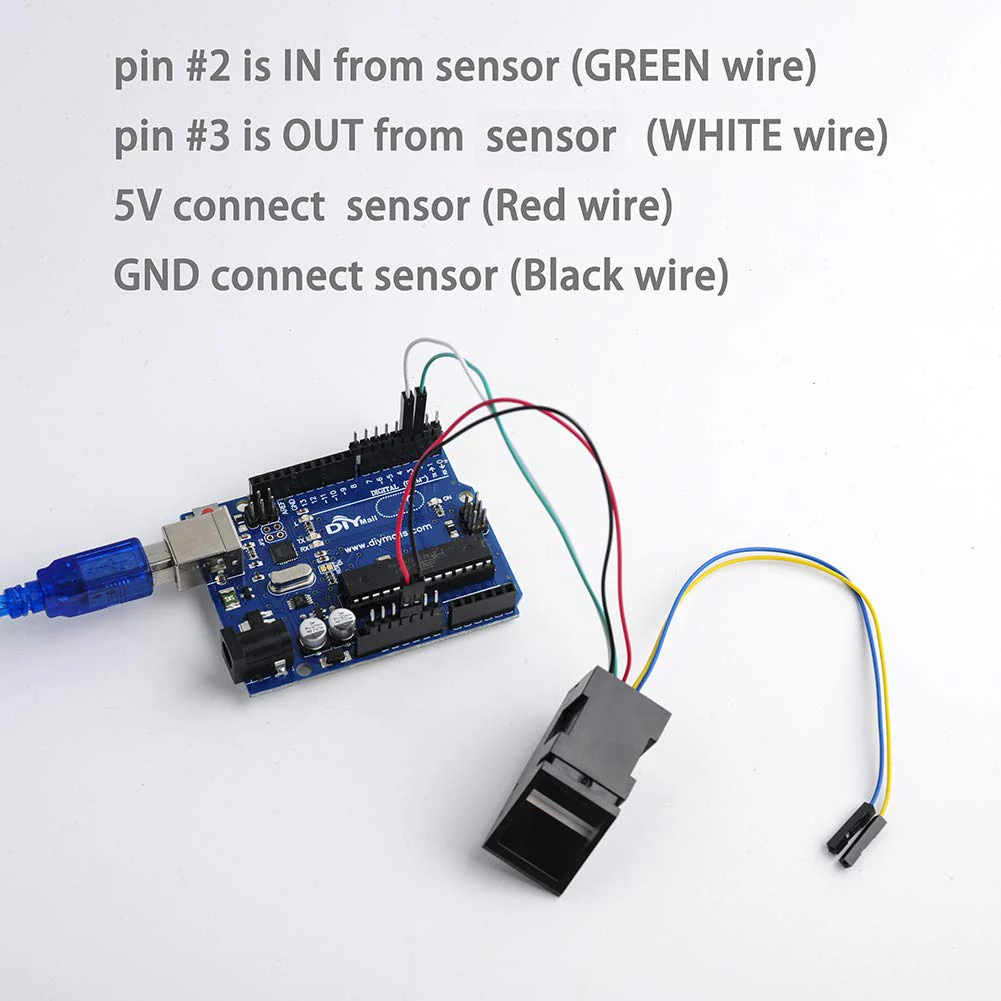

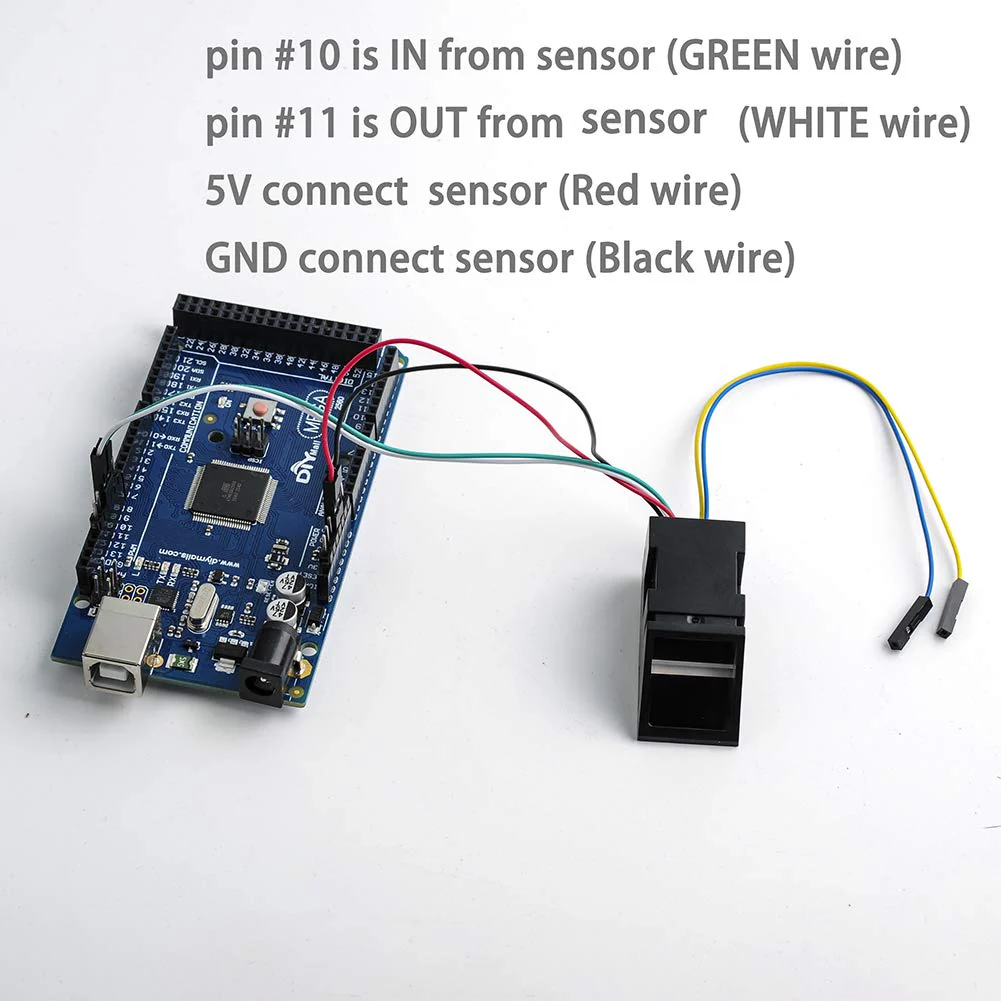

- It can work with any microcontroller which with serial port: such as compatible with arduino, 51, avr, stm32, pic, arm, msp430
- This module can be used for fingerprint collection, fingerprint registration, fingerprint comparison and fingerprint search
- You can enroll new fingers directly - up to 240 finger prints can be stored.
- The sensor is an ideal device for door locks, safes, guns, financial and other security areas
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Optical Fingerprint Reader Sensor Module Door Lock Access Control Red Light for Arduino Mega2560 UNO R3 Geekstory
Optical Fingerprint Reader Sensor Module Door Lock Access Control Red Light for Arduino Mega2560 UNO R3 Geekstory
Optical Fingerprint Reader Sensor Module Door Lock Access Control Red Light for Arduino Mega2560 UNO R3 Geekstory
Specifications: Model type: O40 Supply voltage: DC 3.8 ~ 7.0V Backlight color: red Light way: long light / flashing Supply current: Operating current: <60mA Peak current: <85mA Fingerprint image input time: <0.5 seconds Window area: 15 × 17mm Matching method: Comparison method (1: 1); Search method (1: N) Characteristic file: 384 bytes Template file: 786 bytes Storage capacity: 240 Security Level: 3 (from low to high: 1,2,3,4,5) False Acceptance Rate (FAR): <0.001% (Security Level 3) Refusal rate (FRR): <1.0% (security level is 3) Search time: <220 ms (1: 240 average) Host interface: UART (TTL logic level) Communication baud rate (UART): (9600 × N) bps Where N = 1 ~ 12 (default N = 6, ie 57600bps) Working temperature: -30 °C to +70 °C Storage Temperature: -40 °C to +85 °C Applications: Fingerprint door locks, safes, guns, financial and other security areas; Access control systems, industrial computers, POS machines, driving training, attendance and other areas of identity; Private clubs, management software, licensing and other management areas; Medicare recipients, pensioners receive, fingerprint payment and other financial areas. Read more Functions 1. Fingerprint collection 2. Fingerprint registration 3. Fingerprint comparison 4. Fingerprint search Read more Fingerprint sensor 2560 connection Fingerprint Module works with 2560 Connection: pin 10 is IN from sensor (GREEN wire) pin 11 is OUT from sensor (WHITE wire) 5V connect sensor (Red wire) GND connect sensor (Black wire) Fingerprint sensor R3 connection Fingerprint Module works with R3 Connection: pin 2 is IN from sensor (GREEN wire) pin 3 is OUT from sensor (WHITE wire) 5V connect sensor (Red wire) GND connect sensor (Black wire) Fingerprint sensor It can work with any microcontroller which with serial port: such as compatible with arduino, 51, avr, stm32, pic, arm, msp430 Read more About US ——Professional service, Integrity operation, Customer first. ——We have always cared about the customer experience and improve the product function details. ——We will be responsible for any damages or losses incurred in the shipping process. ——We try our best to provide the most professional service for each customer. Read more
Product Features
- The product documentation link cannot be displayed. If you need technical documentation, please click Geekstory(you can find "Sold by Geekstory" under Buy Now button), in the new page, click Ask a question to email us
- It can work with any microcontroller which with serial port: such as compatible with arduino, 51, avr, stm32, pic, arm, msp430
- This module can be used for fingerprint collection, fingerprint registration, fingerprint comparison and fingerprint search
- You can enroll new fingers directly - up to 240 finger prints can be stored.
- The sensor is an ideal device for door locks, safes, guns, financial and other security areas
Original: $162.00
-65%$162.00
$56.70Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Optical Fingerprint Reader Sensor Module Door Lock Access Control Red Light for Arduino Mega2560 UNO R3 Geekstory
Specifications: Model type: O40 Supply voltage: DC 3.8 ~ 7.0V Backlight color: red Light way: long light / flashing Supply current: Operating current: <60mA Peak current: <85mA Fingerprint image input time: <0.5 seconds Window area: 15 × 17mm Matching method: Comparison method (1: 1); Search method (1: N) Characteristic file: 384 bytes Template file: 786 bytes Storage capacity: 240 Security Level: 3 (from low to high: 1,2,3,4,5) False Acceptance Rate (FAR): <0.001% (Security Level 3) Refusal rate (FRR): <1.0% (security level is 3) Search time: <220 ms (1: 240 average) Host interface: UART (TTL logic level) Communication baud rate (UART): (9600 × N) bps Where N = 1 ~ 12 (default N = 6, ie 57600bps) Working temperature: -30 °C to +70 °C Storage Temperature: -40 °C to +85 °C Applications: Fingerprint door locks, safes, guns, financial and other security areas; Access control systems, industrial computers, POS machines, driving training, attendance and other areas of identity; Private clubs, management software, licensing and other management areas; Medicare recipients, pensioners receive, fingerprint payment and other financial areas. Read more Functions 1. Fingerprint collection 2. Fingerprint registration 3. Fingerprint comparison 4. Fingerprint search Read more Fingerprint sensor 2560 connection Fingerprint Module works with 2560 Connection: pin 10 is IN from sensor (GREEN wire) pin 11 is OUT from sensor (WHITE wire) 5V connect sensor (Red wire) GND connect sensor (Black wire) Fingerprint sensor R3 connection Fingerprint Module works with R3 Connection: pin 2 is IN from sensor (GREEN wire) pin 3 is OUT from sensor (WHITE wire) 5V connect sensor (Red wire) GND connect sensor (Black wire) Fingerprint sensor It can work with any microcontroller which with serial port: such as compatible with arduino, 51, avr, stm32, pic, arm, msp430 Read more About US ——Professional service, Integrity operation, Customer first. ——We have always cared about the customer experience and improve the product function details. ——We will be responsible for any damages or losses incurred in the shipping process. ——We try our best to provide the most professional service for each customer. Read more
Product Features
- The product documentation link cannot be displayed. If you need technical documentation, please click Geekstory(you can find "Sold by Geekstory" under Buy Now button), in the new page, click Ask a question to email us
- It can work with any microcontroller which with serial port: such as compatible with arduino, 51, avr, stm32, pic, arm, msp430
- This module can be used for fingerprint collection, fingerprint registration, fingerprint comparison and fingerprint search
- You can enroll new fingers directly - up to 240 finger prints can be stored.
- The sensor is an ideal device for door locks, safes, guns, financial and other security areas
