Fasizi 15W USB Step Up Power Supply Module Boost Adjustable Converter Fan Speed Control Potentiometer with LCD Display - Red
Fasizi 15W USB Step Up Power Supply Module Boost Adjustable Converter Fan Speed Control Potentiometer with LCD Display - Red
Specifications: 1. Product Name: USB CVCC Buck Boost Voltage Converter 2. Product Code: ZK-DP3A 3. Input voltage for pads: DC 4.0V-13.0V (Note USB input) 4. Input voltage for USB: DC 5.0V Output voltage: DC 1V-30.0V 6. Output Current: 2A 7. Output power: 15W (max. ). 8. Voltage display precision: +/-0.1V 9. Voltage display resolution: 0.01V 10. Current display range: 0~2.2A 11. Current display accuracy: +/-0.05A 12. Current Display Resolution: 0.001A 13. Capacity Precision: 0.00W~15.0W 14. Protection temperature threshold: 100°C 15. Conversion Efficiency: 94% 16. Working current: 30mA Operating temperature range: -20℃~85℃ 18. Operating Humidity: 0%-95%RH Size: 100.5 x 40 x 19.5mm Protection function: 1. Over Voltage Protection The module will automatically turn off the output voltage when the output voltage is more than 30.5V. 2. Over Current Protection The module will automatically turn off the output when the output current is more than 2A. 3. Over Current Protection The module will automatically turn off the output when the output power is more than 15W. "OPP" is displayed. Users need to reduce the load power and then press the "ON/OFF" button. 4. Current Error: Large display error when the output current is less than 0.05A. It cannot display an output current when the current is 10~40mA. 5. Over Temperature Protection The module will automatically turn off the output when the temperature is more than 100℃. "OTP" is displayed. Users need to reduce the load power and then press the "ON/OFF" button. Package includes: 1 x 15W USB Step Up Power Supply Module
Product Features

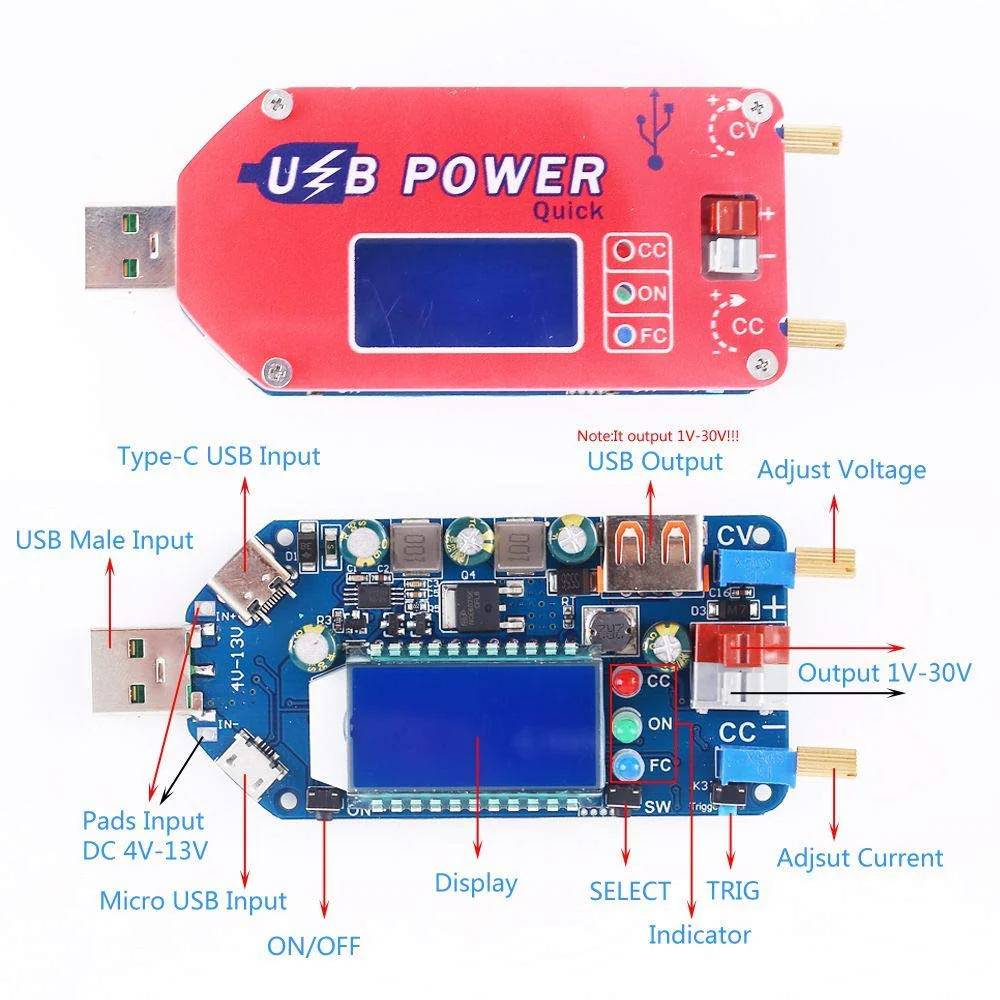

- This is a 15W DC adjustable constant voltage constant current step up/down power supply module with LED digital tube display.
- It supports fast charger for QC2.0, QC3.0, AFC, FCP, SCP fast charging protocol. Display output voltage, output current and output power.
- Adjustable output voltage and current. Adjust the output current to meet the requirements. It can be used as an ordinary buck power supply module, charger and LED constant current driver. Simple and efficient, practical.
- Support fast charger, support backflow protection, support constant voltage, constant current setting, LCD HD display, four input power modes, support over current protection.
- Supports surge protection, support via current protection, support over temperature protection, support via current protection, support charging mode.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Fasizi 15W USB Step Up Power Supply Module Boost Adjustable Converter Fan Speed Control Potentiometer with LCD Display - Red
Fasizi 15W USB Step Up Power Supply Module Boost Adjustable Converter Fan Speed Control Potentiometer with LCD Display - Red
Fasizi 15W USB Step Up Power Supply Module Boost Adjustable Converter Fan Speed Control Potentiometer with LCD Display - Red
Specifications: 1. Product Name: USB CVCC Buck Boost Voltage Converter 2. Product Code: ZK-DP3A 3. Input voltage for pads: DC 4.0V-13.0V (Note USB input) 4. Input voltage for USB: DC 5.0V Output voltage: DC 1V-30.0V 6. Output Current: 2A 7. Output power: 15W (max. ). 8. Voltage display precision: +/-0.1V 9. Voltage display resolution: 0.01V 10. Current display range: 0~2.2A 11. Current display accuracy: +/-0.05A 12. Current Display Resolution: 0.001A 13. Capacity Precision: 0.00W~15.0W 14. Protection temperature threshold: 100°C 15. Conversion Efficiency: 94% 16. Working current: 30mA Operating temperature range: -20℃~85℃ 18. Operating Humidity: 0%-95%RH Size: 100.5 x 40 x 19.5mm Protection function: 1. Over Voltage Protection The module will automatically turn off the output voltage when the output voltage is more than 30.5V. 2. Over Current Protection The module will automatically turn off the output when the output current is more than 2A. 3. Over Current Protection The module will automatically turn off the output when the output power is more than 15W. "OPP" is displayed. Users need to reduce the load power and then press the "ON/OFF" button. 4. Current Error: Large display error when the output current is less than 0.05A. It cannot display an output current when the current is 10~40mA. 5. Over Temperature Protection The module will automatically turn off the output when the temperature is more than 100℃. "OTP" is displayed. Users need to reduce the load power and then press the "ON/OFF" button. Package includes: 1 x 15W USB Step Up Power Supply Module
Product Features
- This is a 15W DC adjustable constant voltage constant current step up/down power supply module with LED digital tube display.
- It supports fast charger for QC2.0, QC3.0, AFC, FCP, SCP fast charging protocol. Display output voltage, output current and output power.
- Adjustable output voltage and current. Adjust the output current to meet the requirements. It can be used as an ordinary buck power supply module, charger and LED constant current driver. Simple and efficient, practical.
- Support fast charger, support backflow protection, support constant voltage, constant current setting, LCD HD display, four input power modes, support over current protection.
- Supports surge protection, support via current protection, support over temperature protection, support via current protection, support charging mode.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Fasizi 15W USB Step Up Power Supply Module Boost Adjustable Converter Fan Speed Control Potentiometer with LCD Display - Red
Specifications: 1. Product Name: USB CVCC Buck Boost Voltage Converter 2. Product Code: ZK-DP3A 3. Input voltage for pads: DC 4.0V-13.0V (Note USB input) 4. Input voltage for USB: DC 5.0V Output voltage: DC 1V-30.0V 6. Output Current: 2A 7. Output power: 15W (max. ). 8. Voltage display precision: +/-0.1V 9. Voltage display resolution: 0.01V 10. Current display range: 0~2.2A 11. Current display accuracy: +/-0.05A 12. Current Display Resolution: 0.001A 13. Capacity Precision: 0.00W~15.0W 14. Protection temperature threshold: 100°C 15. Conversion Efficiency: 94% 16. Working current: 30mA Operating temperature range: -20℃~85℃ 18. Operating Humidity: 0%-95%RH Size: 100.5 x 40 x 19.5mm Protection function: 1. Over Voltage Protection The module will automatically turn off the output voltage when the output voltage is more than 30.5V. 2. Over Current Protection The module will automatically turn off the output when the output current is more than 2A. 3. Over Current Protection The module will automatically turn off the output when the output power is more than 15W. "OPP" is displayed. Users need to reduce the load power and then press the "ON/OFF" button. 4. Current Error: Large display error when the output current is less than 0.05A. It cannot display an output current when the current is 10~40mA. 5. Over Temperature Protection The module will automatically turn off the output when the temperature is more than 100℃. "OTP" is displayed. Users need to reduce the load power and then press the "ON/OFF" button. Package includes: 1 x 15W USB Step Up Power Supply Module
Product Features
- This is a 15W DC adjustable constant voltage constant current step up/down power supply module with LED digital tube display.
- It supports fast charger for QC2.0, QC3.0, AFC, FCP, SCP fast charging protocol. Display output voltage, output current and output power.
- Adjustable output voltage and current. Adjust the output current to meet the requirements. It can be used as an ordinary buck power supply module, charger and LED constant current driver. Simple and efficient, practical.
- Support fast charger, support backflow protection, support constant voltage, constant current setting, LCD HD display, four input power modes, support over current protection.
- Supports surge protection, support via current protection, support over temperature protection, support via current protection, support charging mode.
