Create idea 1 Set Time of Flight TOF200C (2M) Laser Distance Sensor Module Compatible with ArduinoDEMO, Compatible with STM32 Demo (40mA 25°)
Create idea 1 Set Time of Flight TOF200C (2M) Laser Distance Sensor Module Compatible with ArduinoDEMO, Compatible with STM32 Demo (40mA 25°)
Product Features

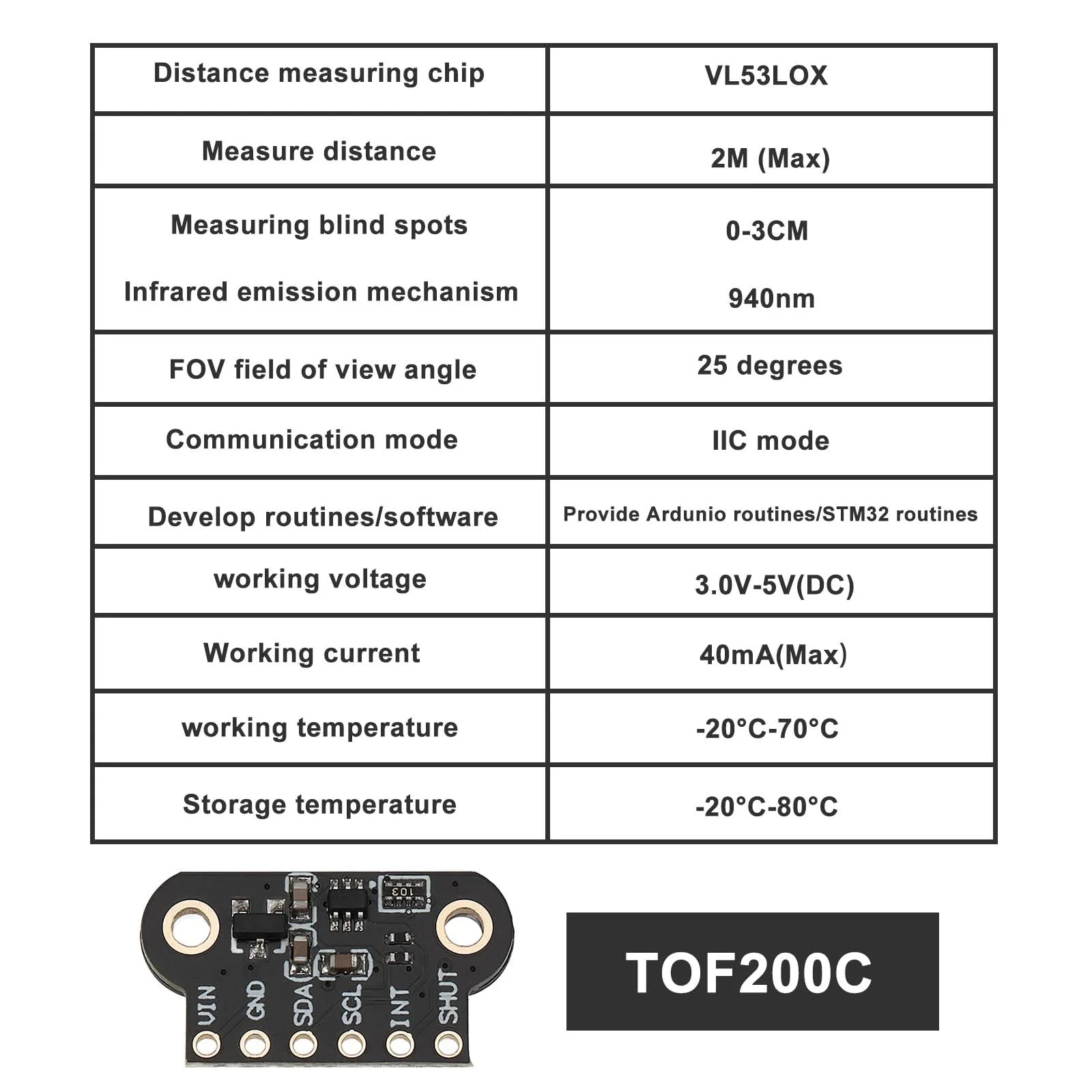

- Product parameters: communication mode: ICC mode, field of view: 25, blind spot measurement: 0-3 cm, operating voltage: 3.0 V-5 V (DC), operating current: 40 mA (max), operating temperature: -20 C-70 C, storage temperature: -20 C-80 C.

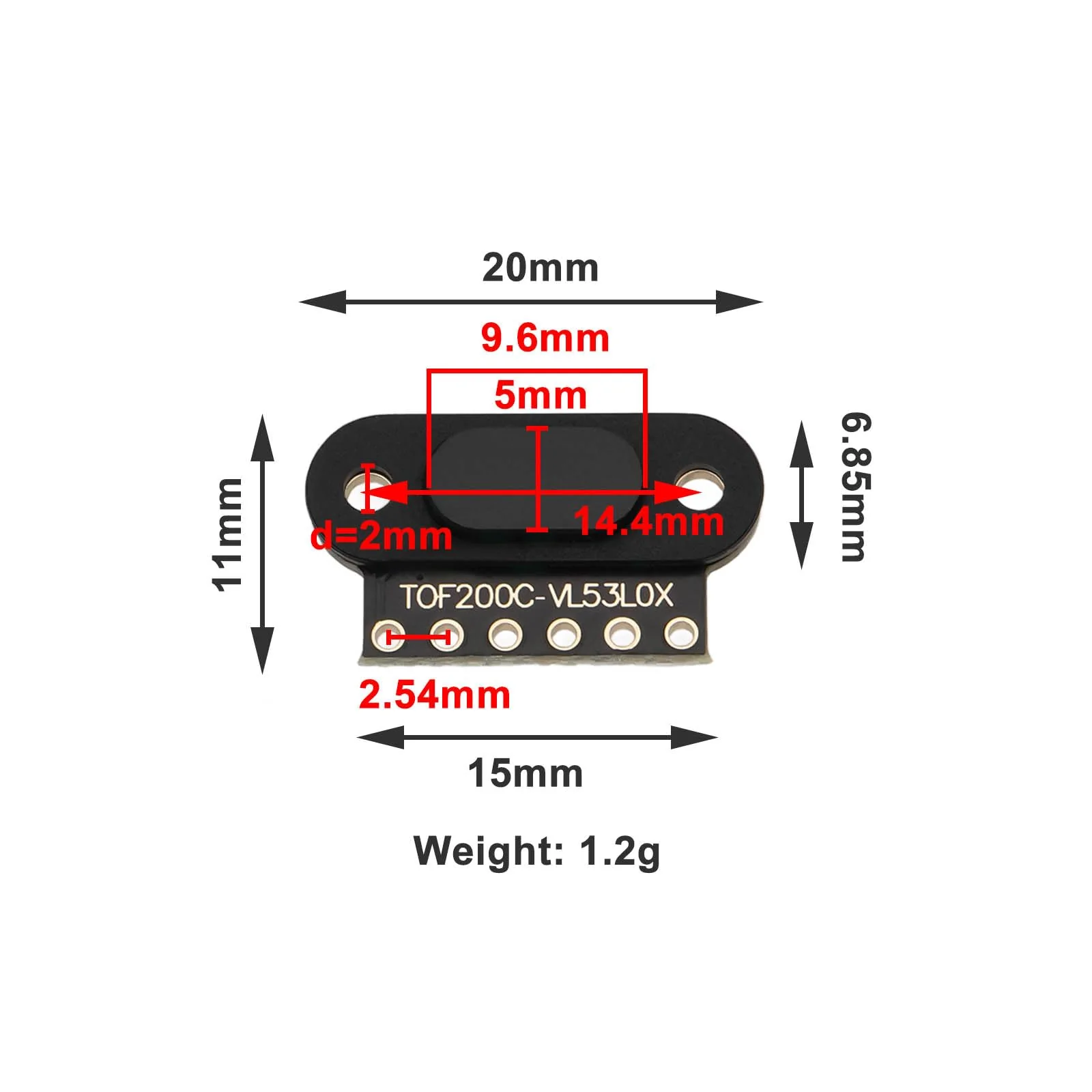

- PRODUCT SIZE The product is 20mm long and 11mm wide. Manual measurement, please allow slight errors.
- Compatibility The product is compatible with A-rduino DEMO and compatible with STM32 DEMO.
- Product features: The product has a special optical cover that can provide physical protection for the module, including preventing dust from entering and can also provide optical filtering for the module.

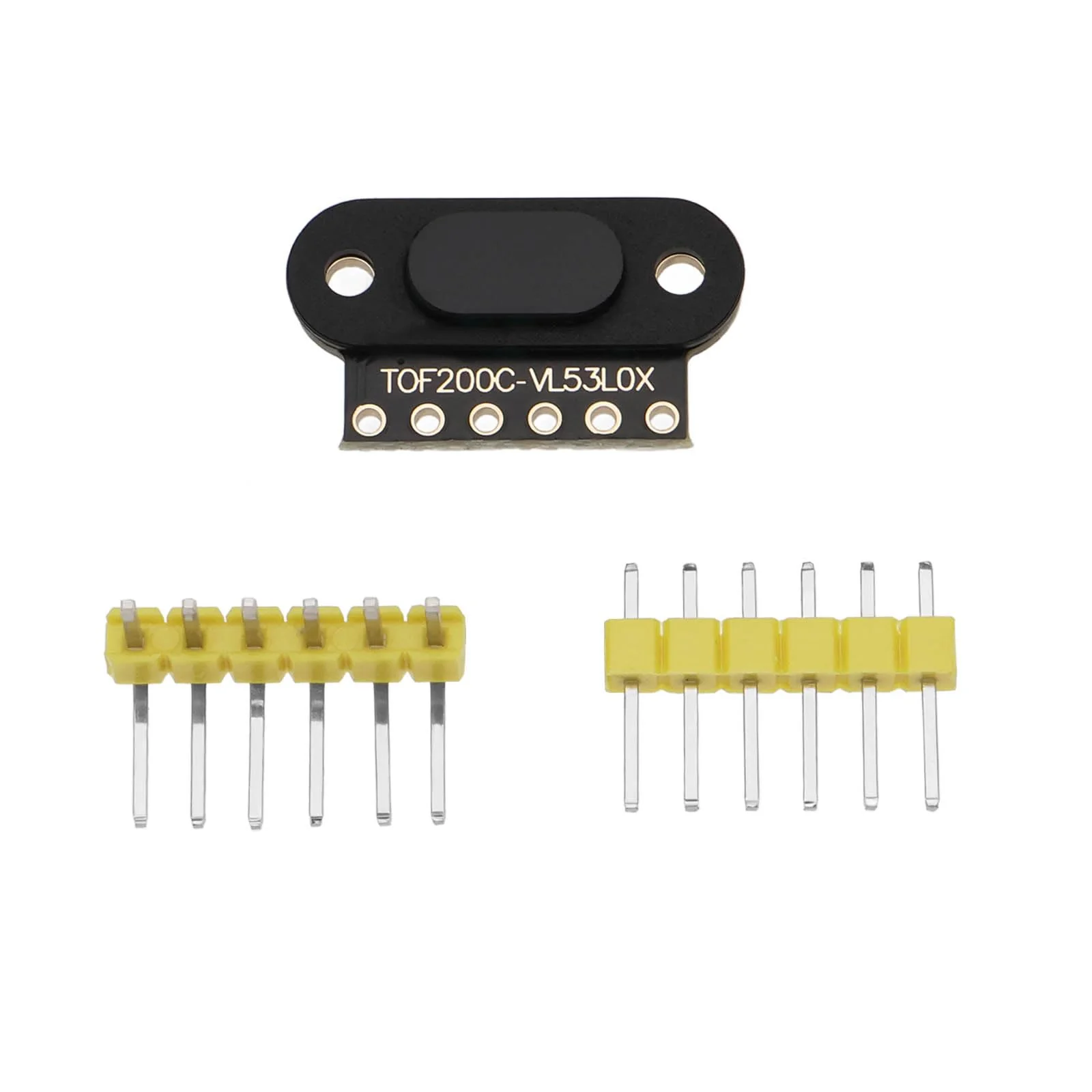

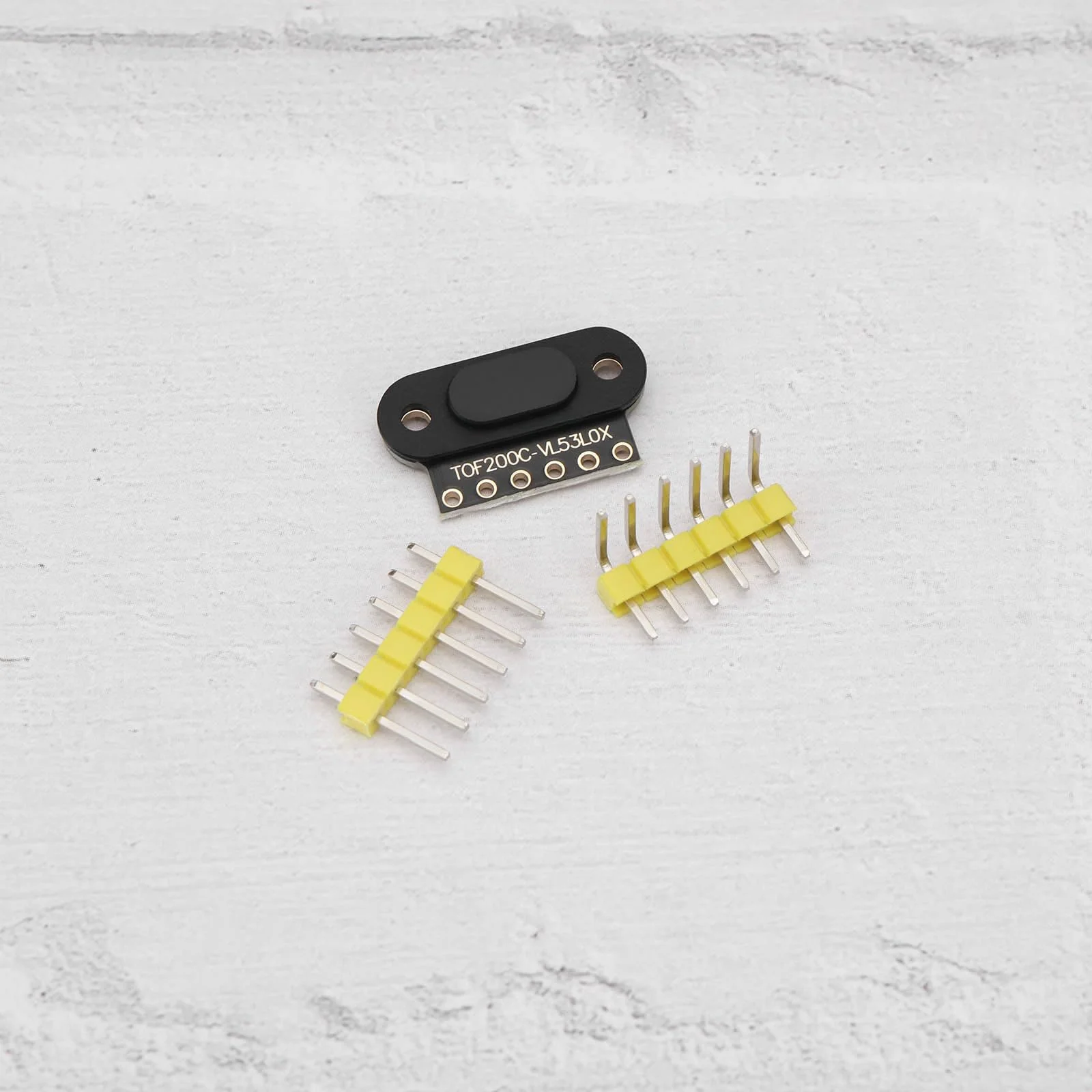

- Product list The product contains a total of 1 x TOF200C sensor module, 2 x pin header, which can fully meet and replace your daily use.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Create idea 1 Set Time of Flight TOF200C (2M) Laser Distance Sensor Module Compatible with ArduinoDEMO, Compatible with STM32 Demo (40mA 25°)
Create idea 1 Set Time of Flight TOF200C (2M) Laser Distance Sensor Module Compatible with ArduinoDEMO, Compatible with STM32 Demo (40mA 25°)
Create idea 1 Set Time of Flight TOF200C (2M) Laser Distance Sensor Module Compatible with ArduinoDEMO, Compatible with STM32 Demo (40mA 25°)
Product Features
- Product parameters: communication mode: ICC mode, field of view: 25, blind spot measurement: 0-3 cm, operating voltage: 3.0 V-5 V (DC), operating current: 40 mA (max), operating temperature: -20 C-70 C, storage temperature: -20 C-80 C.
- PRODUCT SIZE The product is 20mm long and 11mm wide. Manual measurement, please allow slight errors.
- Compatibility The product is compatible with A-rduino DEMO and compatible with STM32 DEMO.
- Product features: The product has a special optical cover that can provide physical protection for the module, including preventing dust from entering and can also provide optical filtering for the module.
- Product list The product contains a total of 1 x TOF200C sensor module, 2 x pin header, which can fully meet and replace your daily use.
$40.95
Original: $117.00
-65%Create idea 1 Set Time of Flight TOF200C (2M) Laser Distance Sensor Module Compatible with ArduinoDEMO, Compatible with STM32 Demo (40mA 25°)—
$117.00
$40.95Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Create idea 1 Set Time of Flight TOF200C (2M) Laser Distance Sensor Module Compatible with ArduinoDEMO, Compatible with STM32 Demo (40mA 25°)
Product Features
- Product parameters: communication mode: ICC mode, field of view: 25, blind spot measurement: 0-3 cm, operating voltage: 3.0 V-5 V (DC), operating current: 40 mA (max), operating temperature: -20 C-70 C, storage temperature: -20 C-80 C.
- PRODUCT SIZE The product is 20mm long and 11mm wide. Manual measurement, please allow slight errors.
- Compatibility The product is compatible with A-rduino DEMO and compatible with STM32 DEMO.
- Product features: The product has a special optical cover that can provide physical protection for the module, including preventing dust from entering and can also provide optical filtering for the module.
- Product list The product contains a total of 1 x TOF200C sensor module, 2 x pin header, which can fully meet and replace your daily use.
