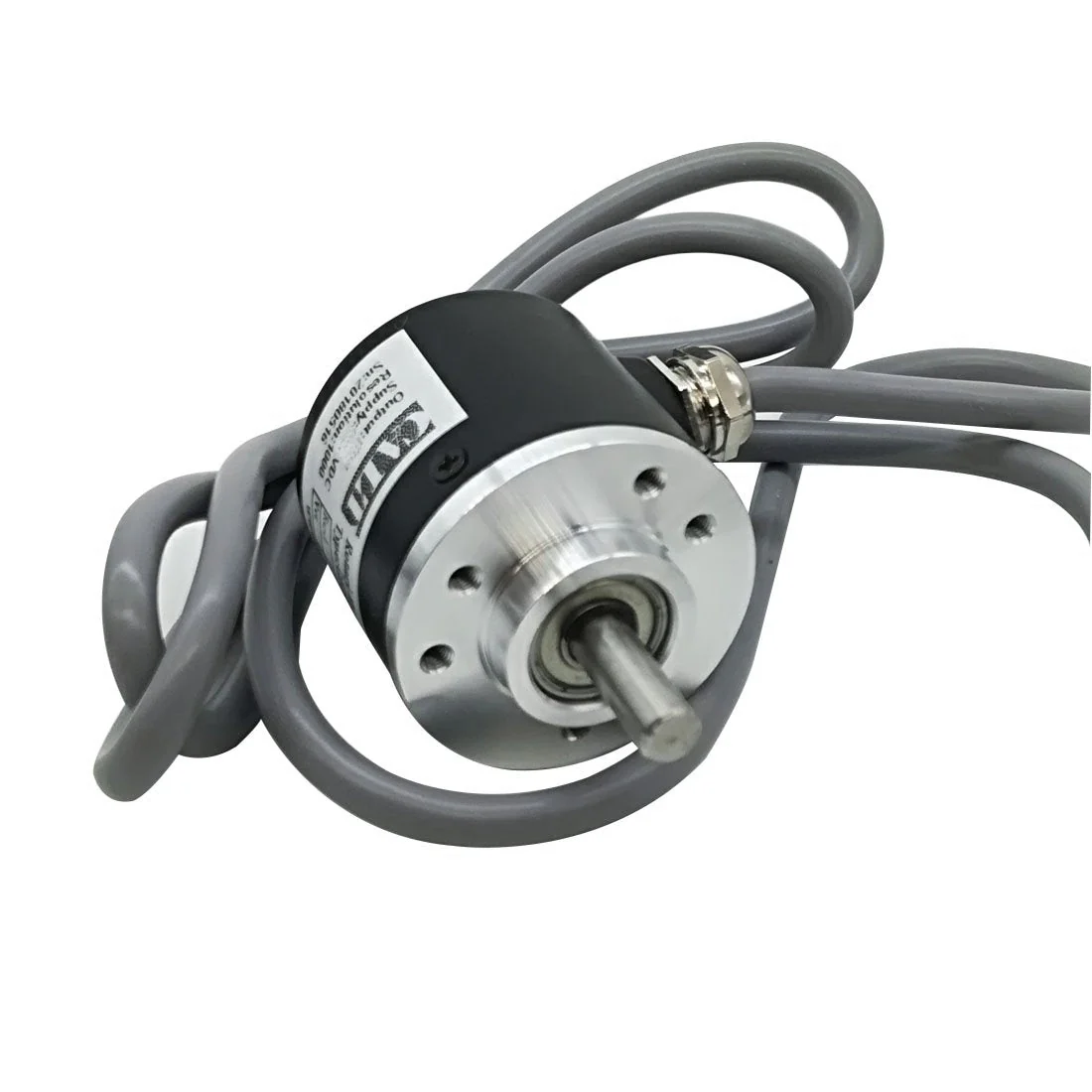

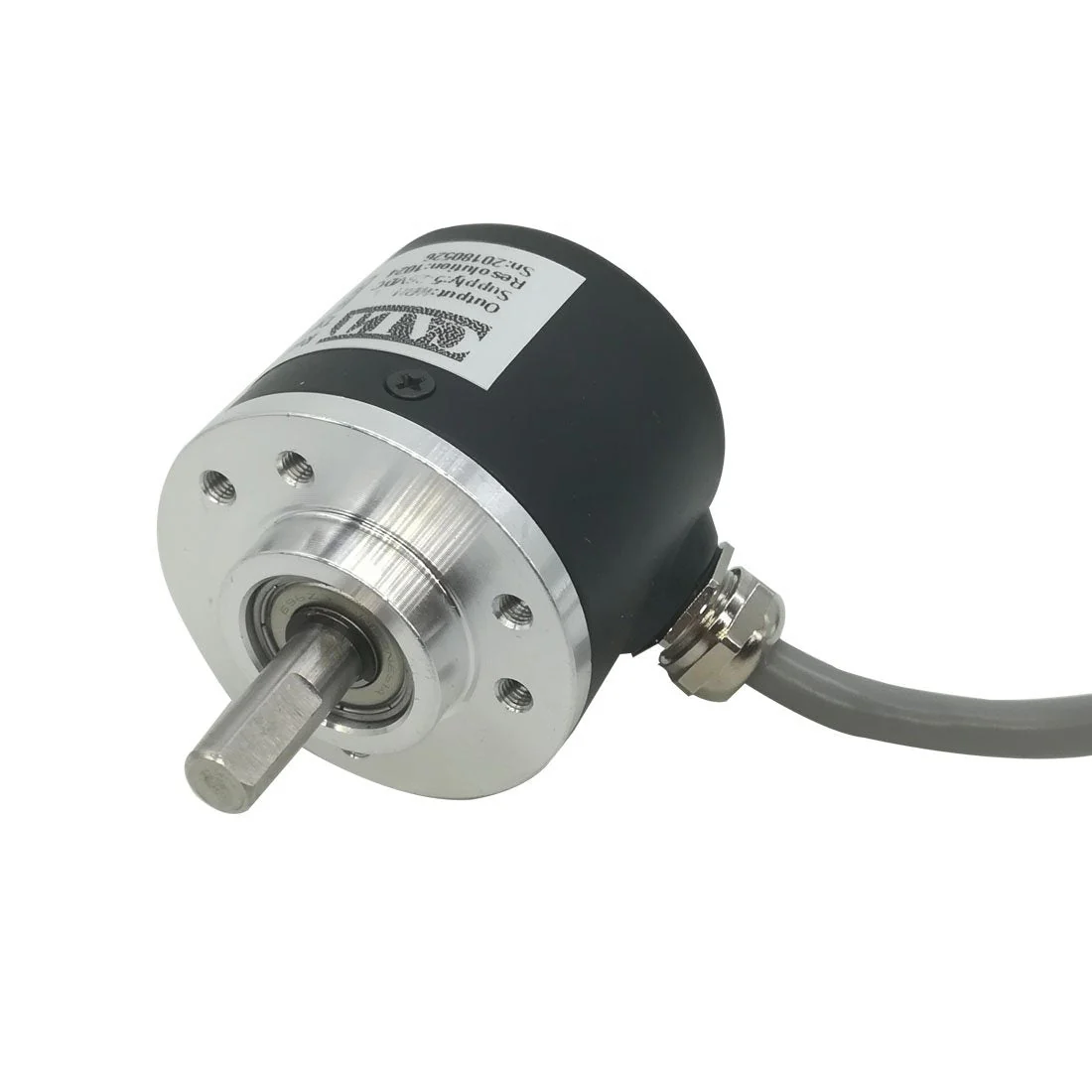

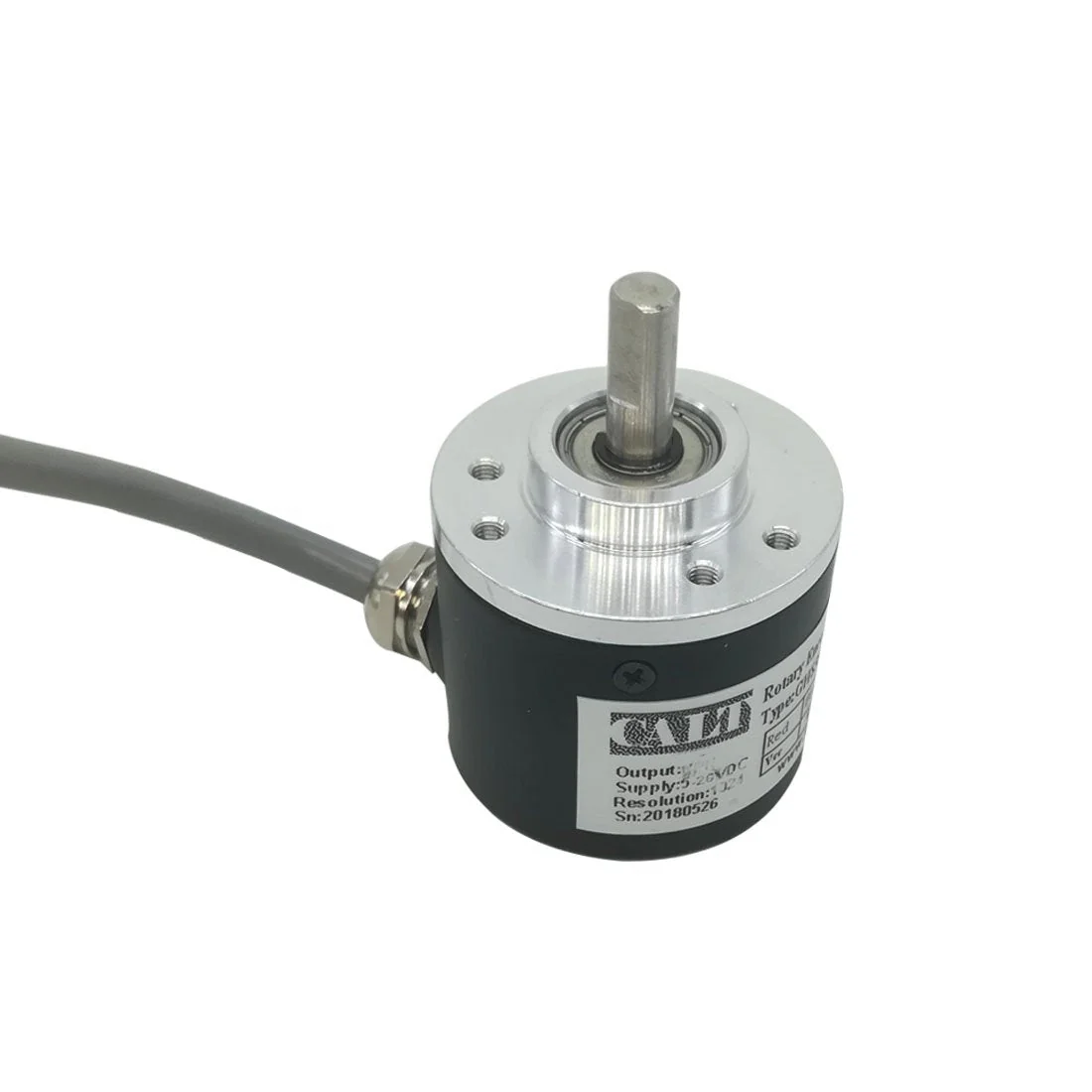

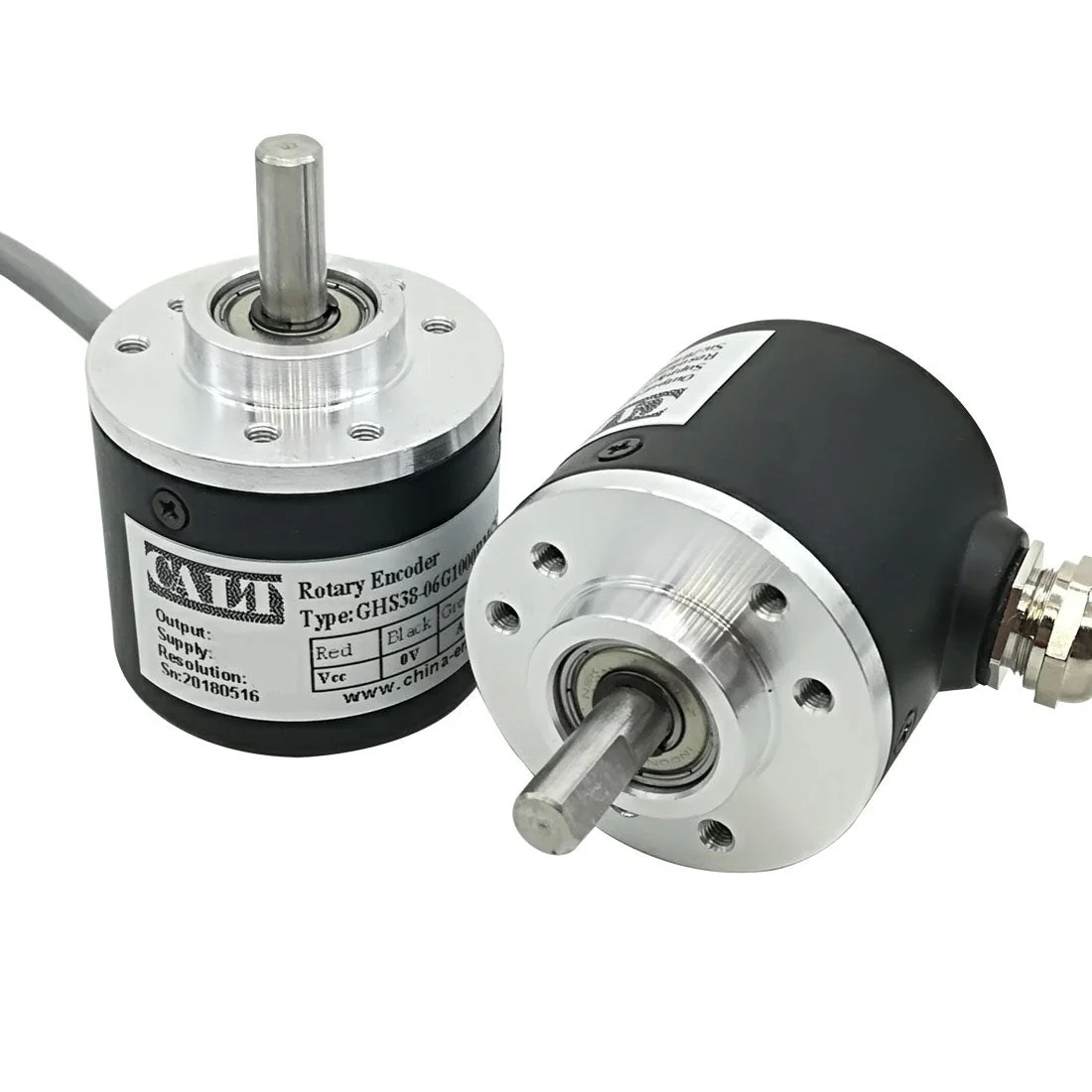

CALT 5 Volt Line Driver Output, 6mm Shank, Optical Rotary Encoder Sensors (1000ppr)
CALT 5 Volt Line Driver Output, 6mm Shank, Optical Rotary Encoder Sensors (1000ppr)

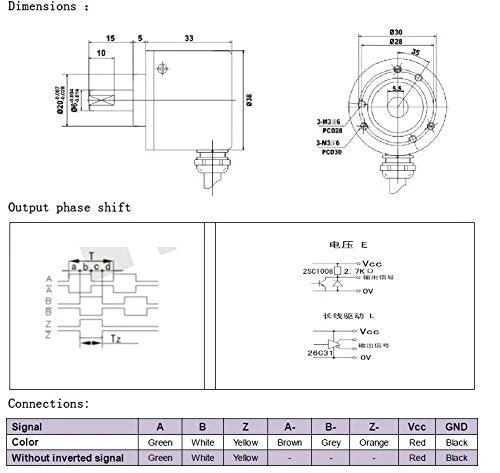

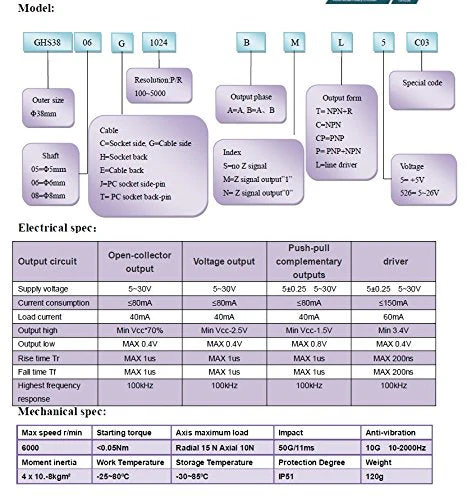

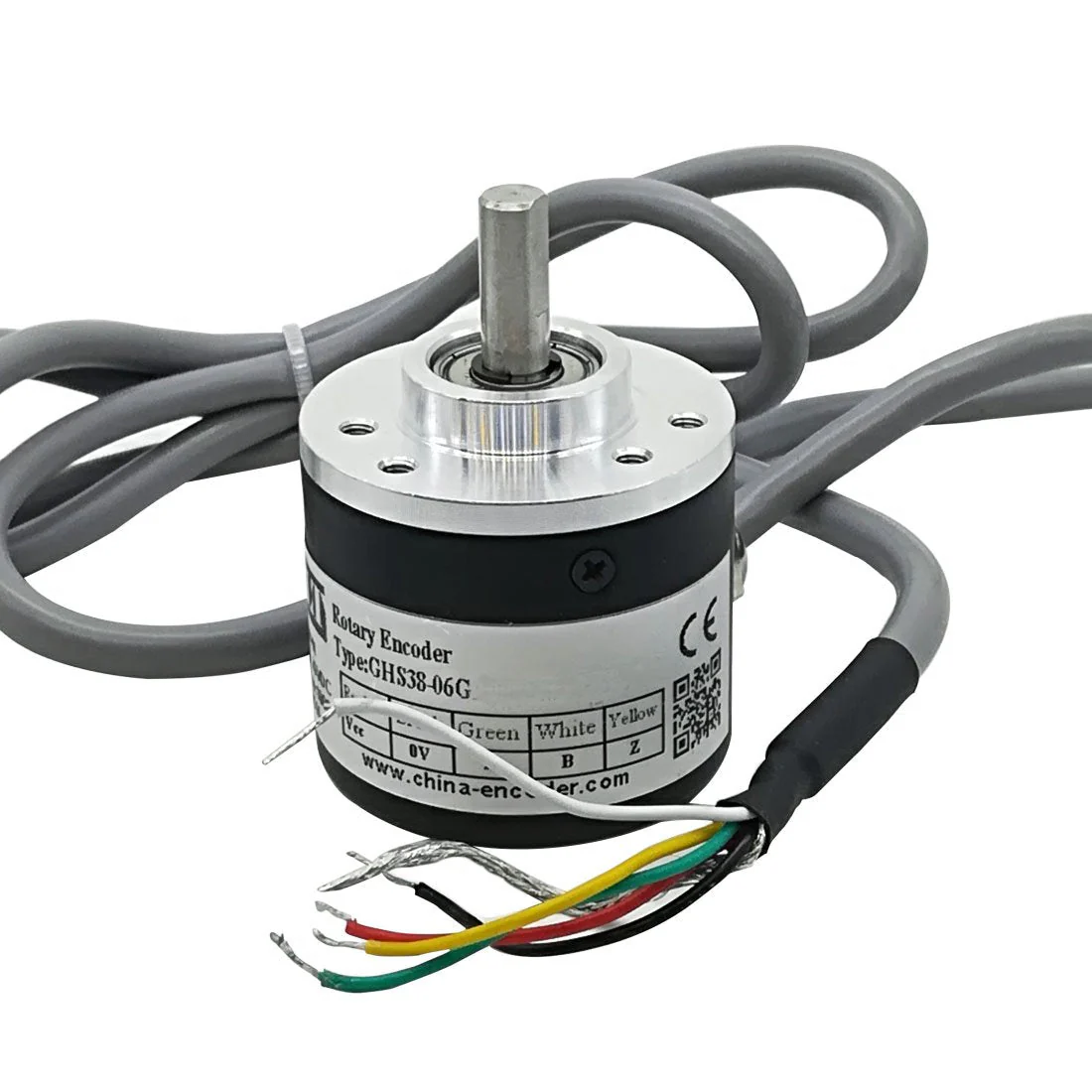

Widely used in steel industry, textile machinery, port machinery, plastic machinery, hoisting machinery, printing machinery, glass machinery, printing machinery, wood machinery, packaging machinery, machine tools, logistics machinery, tire machinery, electronics and solar, elevators. Specifications: Color: as picture show Power supply: DC 5V Max. Speed: 6000rpm Size:Shank:6mm diameter, bowl size:38mm outer diameter. Output: line driver with ABZ, A, B, Z signals Connection: With 3 channels: Red = VCC, Black = 0V, Green = A, White = B, Yellow = Z If 6 channels: red = VCC, black = 0V, green = A, white = B, yellow = Z, brown = A, grey = B, orange = Z Note: If the encoder is not connected to the device, cannot be directly oscilloscope oscilloscope (open collector output without pull-up resistance if there is no voltage output) If you want the oscilloscope in AB two-phase output with two pull-up resistors. Cable: 1m cable side
Product Features
- 38mm OD 6mm Stainless Steel Rotary Encoders with Solid Shank
- DC 5V line driver with A, B, Z, A, B, Z signals
- Protection class: IP54
- Load capacity heavy, anti-oil and water
- 1 year warranty
Product Information
Product Information
Shipping & Returns
Shipping & Returns
CALT 5 Volt Line Driver Output, 6mm Shank, Optical Rotary Encoder Sensors (1000ppr)
CALT 5 Volt Line Driver Output, 6mm Shank, Optical Rotary Encoder Sensors (1000ppr)
CALT 5 Volt Line Driver Output, 6mm Shank, Optical Rotary Encoder Sensors (1000ppr)
Widely used in steel industry, textile machinery, port machinery, plastic machinery, hoisting machinery, printing machinery, glass machinery, printing machinery, wood machinery, packaging machinery, machine tools, logistics machinery, tire machinery, electronics and solar, elevators. Specifications: Color: as picture show Power supply: DC 5V Max. Speed: 6000rpm Size:Shank:6mm diameter, bowl size:38mm outer diameter. Output: line driver with ABZ, A, B, Z signals Connection: With 3 channels: Red = VCC, Black = 0V, Green = A, White = B, Yellow = Z If 6 channels: red = VCC, black = 0V, green = A, white = B, yellow = Z, brown = A, grey = B, orange = Z Note: If the encoder is not connected to the device, cannot be directly oscilloscope oscilloscope (open collector output without pull-up resistance if there is no voltage output) If you want the oscilloscope in AB two-phase output with two pull-up resistors. Cable: 1m cable side
Product Features
- 38mm OD 6mm Stainless Steel Rotary Encoders with Solid Shank
- DC 5V line driver with A, B, Z, A, B, Z signals
- Protection class: IP54
- Load capacity heavy, anti-oil and water
- 1 year warranty
Original: $319.00
-65%$319.00
$111.65Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
CALT 5 Volt Line Driver Output, 6mm Shank, Optical Rotary Encoder Sensors (1000ppr)
Widely used in steel industry, textile machinery, port machinery, plastic machinery, hoisting machinery, printing machinery, glass machinery, printing machinery, wood machinery, packaging machinery, machine tools, logistics machinery, tire machinery, electronics and solar, elevators. Specifications: Color: as picture show Power supply: DC 5V Max. Speed: 6000rpm Size:Shank:6mm diameter, bowl size:38mm outer diameter. Output: line driver with ABZ, A, B, Z signals Connection: With 3 channels: Red = VCC, Black = 0V, Green = A, White = B, Yellow = Z If 6 channels: red = VCC, black = 0V, green = A, white = B, yellow = Z, brown = A, grey = B, orange = Z Note: If the encoder is not connected to the device, cannot be directly oscilloscope oscilloscope (open collector output without pull-up resistance if there is no voltage output) If you want the oscilloscope in AB two-phase output with two pull-up resistors. Cable: 1m cable side
Product Features
- 38mm OD 6mm Stainless Steel Rotary Encoders with Solid Shank
- DC 5V line driver with A, B, Z, A, B, Z signals
- Protection class: IP54
- Load capacity heavy, anti-oil and water
- 1 year warranty
