Akozon 6 V Gear Motor with Long M3 55 mm Screw Thread Output Shaft Speed Reduction Gear Motor 30/60/100/150/200/300/40/500 RPM (300 RPM) 300 rpm.
Akozon 6 V Gear Motor with Long M3 55 mm Screw Thread Output Shaft Speed Reduction Gear Motor 30/60/100/150/200/300/40/500 RPM (300 RPM)

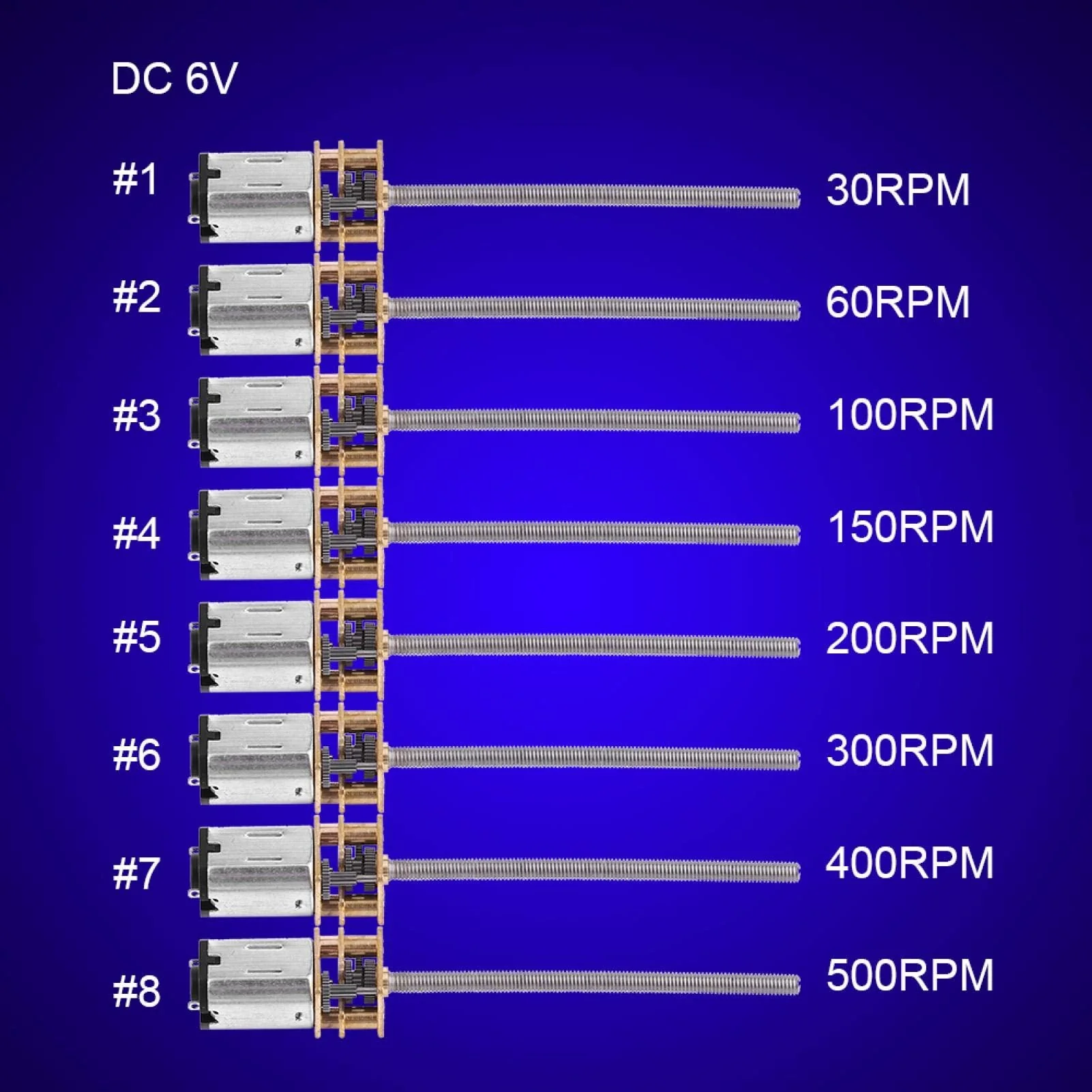

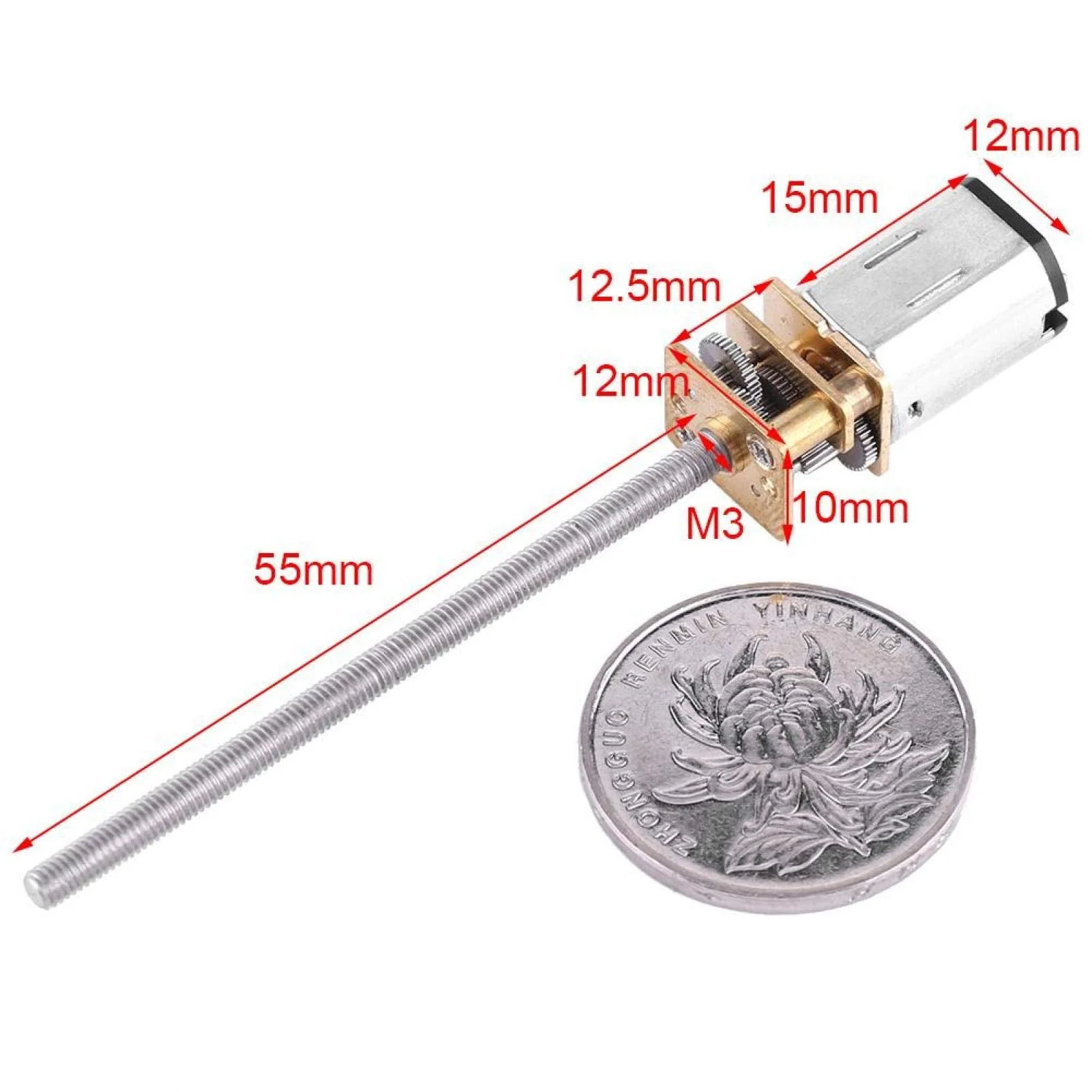

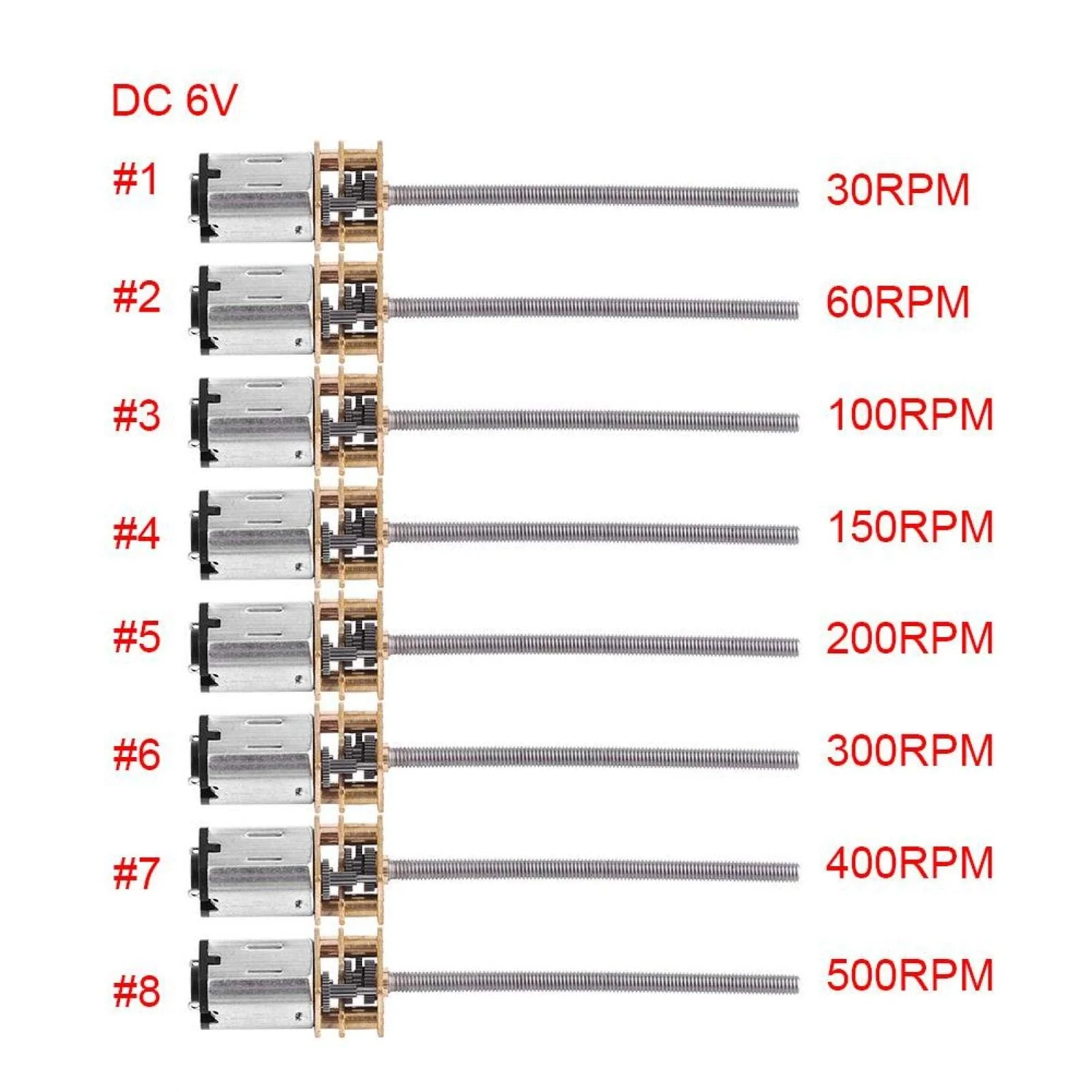

Specifications: Voltage: DC 6 V. Speed: 30 rpm, 60 rpm, 100 rpm, 150 rpm, 200 rpm, 300 rpm, 400 rpm, 500 rpm (optional). Length of output shaft: 55 mm/2.16 inches. Output shaft diameter: M3. Speed (rpm) / current (A). 500/0.16 400/0.04 300/0.03 200/0.03 150/0.03 100/0.01 60/0.03 30/0.02 Rated load: Speed (rpm) / current (A)/torque (KG.CM) 400/0.23/0.15 340/0.07/0.17 240/0.04/0.20 160/0.06/0.30 120/0.05/0.35 80/0.03/0.40 50/0.05/0.60 25/0.04/1.50 Stalling: Torque (KG.CM)/Current (A) 1.00/0.56 1.40/0.2 1.60/0.2 1.80/0.23 2.40/0.25 3.20/1.0 3.20/1.0 10.00/1.0 Package includes: 1 x gear motor.
Product Features
- High quality: Akozon gear is easy to replace and universal, guaranteed perfect fit for easy installation, developed for superior durability, supported by industry leading. All metal gears, sturdy and durable, effectively protect the engine body of the turbo worm gear housing to improve the service life
- Features: a gear motor is a specific type of electric motor designed to generate high torque. They are mainly used to reduce speed in a range of gears, which in turn generates more torque. The motor is miniature DC worm gear motor, you can change the wiring to change the rotation direction of the shaft, with self-locking, the output shaft cannot rotate when power-off, which is self-locking
- Application: The transmission output shaft direction of the motor shaft is arranged vertically, low noise and high torque. The worm gear motor with self-locking, in the case of the absence of electric motors, the output shaft cannot move, which is self-locking. Full metal gears would ensure a longer service life, high torque and less noise.
- Areas of application: the reducer is widely used in windows, doors, miniature winch, robot model, industrial application, it is suitable for automatic fast door lock, binding machine, automatic TV frame, money counting machine, headlights, office equipment, automatic actuator and household appliance and other occasions. There are eight reduction gear motors at different speeds, and you can choose which one you need.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Akozon 6 V Gear Motor with Long M3 55 mm Screw Thread Output Shaft Speed Reduction Gear Motor 30/60/100/150/200/300/40/500 RPM (300 RPM) 300 rpm.
Akozon 6 V Gear Motor with Long M3 55 mm Screw Thread Output Shaft Speed Reduction Gear Motor 30/60/100/150/200/300/40/500 RPM (300 RPM) 300 rpm.
Akozon 6 V Gear Motor with Long M3 55 mm Screw Thread Output Shaft Speed Reduction Gear Motor 30/60/100/150/200/300/40/500 RPM (300 RPM)
Specifications: Voltage: DC 6 V. Speed: 30 rpm, 60 rpm, 100 rpm, 150 rpm, 200 rpm, 300 rpm, 400 rpm, 500 rpm (optional). Length of output shaft: 55 mm/2.16 inches. Output shaft diameter: M3. Speed (rpm) / current (A). 500/0.16 400/0.04 300/0.03 200/0.03 150/0.03 100/0.01 60/0.03 30/0.02 Rated load: Speed (rpm) / current (A)/torque (KG.CM) 400/0.23/0.15 340/0.07/0.17 240/0.04/0.20 160/0.06/0.30 120/0.05/0.35 80/0.03/0.40 50/0.05/0.60 25/0.04/1.50 Stalling: Torque (KG.CM)/Current (A) 1.00/0.56 1.40/0.2 1.60/0.2 1.80/0.23 2.40/0.25 3.20/1.0 3.20/1.0 10.00/1.0 Package includes: 1 x gear motor.
Product Features
- High quality: Akozon gear is easy to replace and universal, guaranteed perfect fit for easy installation, developed for superior durability, supported by industry leading. All metal gears, sturdy and durable, effectively protect the engine body of the turbo worm gear housing to improve the service life
- Features: a gear motor is a specific type of electric motor designed to generate high torque. They are mainly used to reduce speed in a range of gears, which in turn generates more torque. The motor is miniature DC worm gear motor, you can change the wiring to change the rotation direction of the shaft, with self-locking, the output shaft cannot rotate when power-off, which is self-locking
- Application: The transmission output shaft direction of the motor shaft is arranged vertically, low noise and high torque. The worm gear motor with self-locking, in the case of the absence of electric motors, the output shaft cannot move, which is self-locking. Full metal gears would ensure a longer service life, high torque and less noise.
- Areas of application: the reducer is widely used in windows, doors, miniature winch, robot model, industrial application, it is suitable for automatic fast door lock, binding machine, automatic TV frame, money counting machine, headlights, office equipment, automatic actuator and household appliance and other occasions. There are eight reduction gear motors at different speeds, and you can choose which one you need.
Original: $120.00
-65%$120.00
$42.00Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Akozon 6 V Gear Motor with Long M3 55 mm Screw Thread Output Shaft Speed Reduction Gear Motor 30/60/100/150/200/300/40/500 RPM (300 RPM)
Specifications: Voltage: DC 6 V. Speed: 30 rpm, 60 rpm, 100 rpm, 150 rpm, 200 rpm, 300 rpm, 400 rpm, 500 rpm (optional). Length of output shaft: 55 mm/2.16 inches. Output shaft diameter: M3. Speed (rpm) / current (A). 500/0.16 400/0.04 300/0.03 200/0.03 150/0.03 100/0.01 60/0.03 30/0.02 Rated load: Speed (rpm) / current (A)/torque (KG.CM) 400/0.23/0.15 340/0.07/0.17 240/0.04/0.20 160/0.06/0.30 120/0.05/0.35 80/0.03/0.40 50/0.05/0.60 25/0.04/1.50 Stalling: Torque (KG.CM)/Current (A) 1.00/0.56 1.40/0.2 1.60/0.2 1.80/0.23 2.40/0.25 3.20/1.0 3.20/1.0 10.00/1.0 Package includes: 1 x gear motor.
Product Features
- High quality: Akozon gear is easy to replace and universal, guaranteed perfect fit for easy installation, developed for superior durability, supported by industry leading. All metal gears, sturdy and durable, effectively protect the engine body of the turbo worm gear housing to improve the service life
- Features: a gear motor is a specific type of electric motor designed to generate high torque. They are mainly used to reduce speed in a range of gears, which in turn generates more torque. The motor is miniature DC worm gear motor, you can change the wiring to change the rotation direction of the shaft, with self-locking, the output shaft cannot rotate when power-off, which is self-locking
- Application: The transmission output shaft direction of the motor shaft is arranged vertically, low noise and high torque. The worm gear motor with self-locking, in the case of the absence of electric motors, the output shaft cannot move, which is self-locking. Full metal gears would ensure a longer service life, high torque and less noise.
- Areas of application: the reducer is widely used in windows, doors, miniature winch, robot model, industrial application, it is suitable for automatic fast door lock, binding machine, automatic TV frame, money counting machine, headlights, office equipment, automatic actuator and household appliance and other occasions. There are eight reduction gear motors at different speeds, and you can choose which one you need.
