50 MW FTTH Fibre Optic Tester, Visual Fault 50 km Locator Fibre Optic Cable Tester Fibre Optical, VFL Fibre Optic Tester, Fibre Optic Cable Tester with Singlemode 9/125 um FC Male to LC Female Adapter red
50 MW FTTH Fibre Optic Tester, Visual Fault 50 km Locator Fibre Optic Cable Tester Fibre Optical, VFL Fibre Optic Tester, Fibre Optic Cable Tester with Singlemode 9/125 um FC Male to LC Female Adapter
Product details: Output wavelength: 650nm ± 20nm Output power: 50mW Detection distance: 50 km. Fiber Type: Single Mode Connector: universal adapter 2.5 mm (FC/SC/ST). Operating model: CW and pulse available. Power supply: 2 x AA batteries (not included). Operating temperature: -10 to +50 °C, <90% RH. Storage temperature: 20 - +60 °C, <90 % RH. Package includes: 1 x individual safety strap. 1 x visual error locator. 1 x FC to LC adapter. VFL usage methodVFL is very easy to use. The steps to use a VFL are as follows: Step 1: Remove the plastic connector covers from both ends of the test fiber cable. Step 2: Connect the optical fiber cable troubleshooter to one end of the fiber. Press the test button and watch if light emerges from the other end of the fibre. This gives a simple indication of the continuity of the fiber optic connection. Step 3: Repeat with several other fibers. Pay attention to light emerging from a faulty splice point. This can be an easy way to visually troubleshoot bad splicing or connections. Step 4: Disconnect all devices, put the plastic covers back on the connector ends and return everything to the state it was in before starting the practical exercise so that the next group can complete the hands-on exercise completely. Instructions for using a VFL: 1. Never look directly into the output of the VFL. 2. Cover the output of the VFL with the dust cap when the VFL is not in use. 3. Not recommended for use with dark colored or armoured cables.
Product Features
- Function The optical fiber visual fault locator can detect fiber connectivity and locate fiber faults such as fiber breaks or curvatures. In addition, it has features such as error detection in the OTDR blind zone, end-to-end fiber identification, and mechanical continuous point optimization.

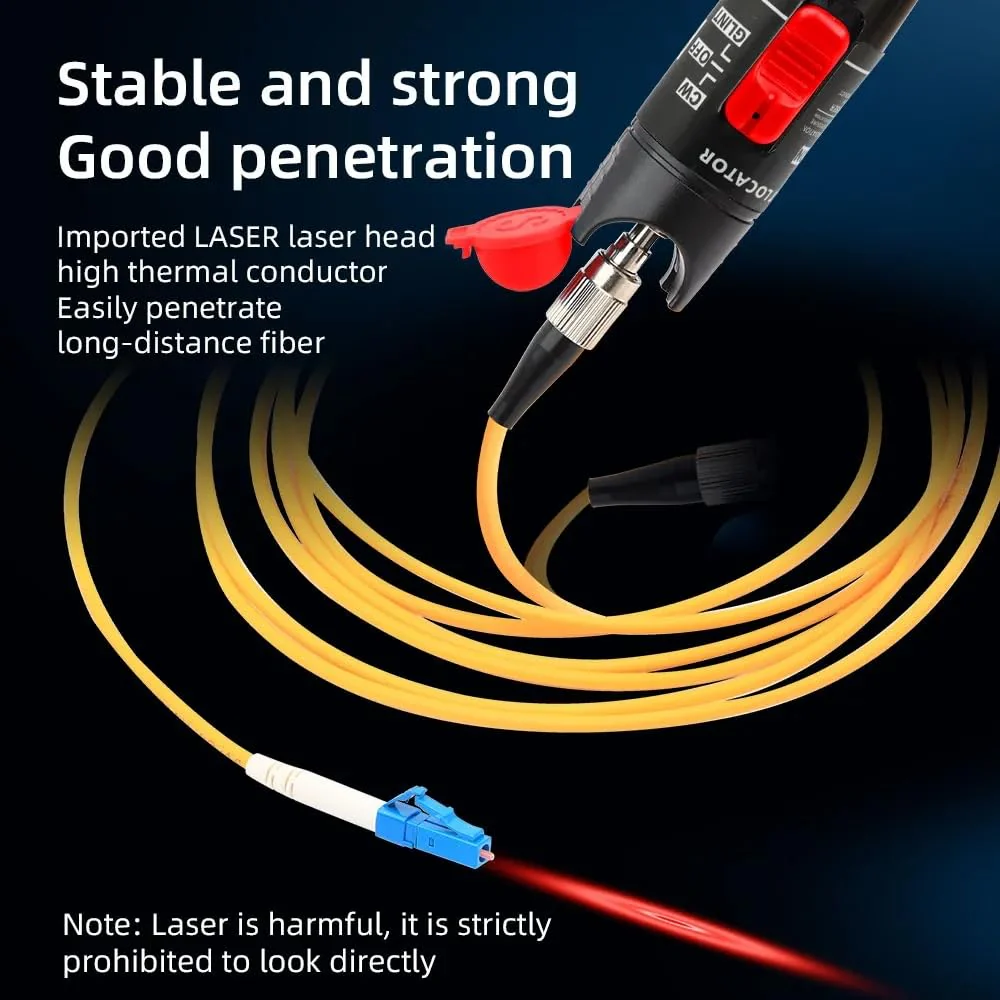

- LONG RANGE TEST The 50MW fiber optic fault detector has strong source output power, which can detect faults in fiber optic patch cord within 50 kilometers in fiber optic cable in both continuous line and pulse mode.

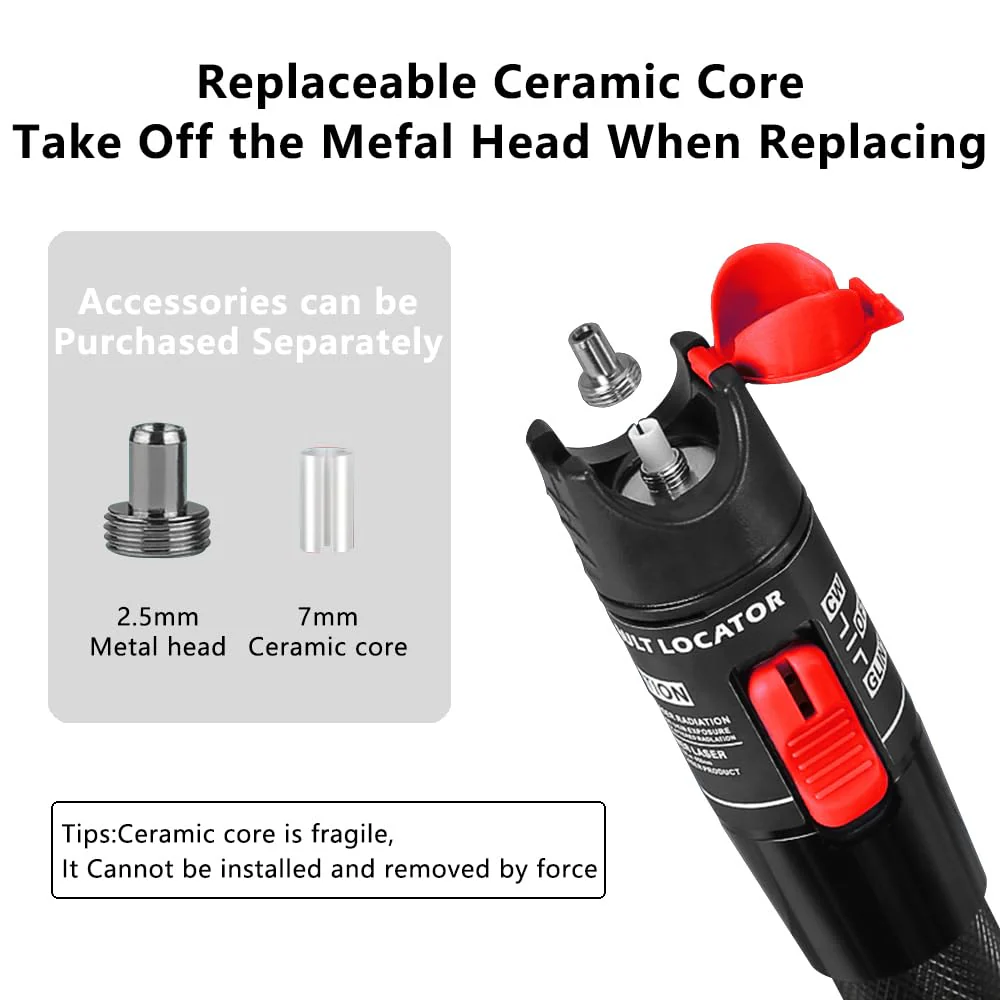

- 2.5mm Universal Connector This visual fault locator is designed for a 2.5mm universal fiber interface and is compatible with a variety of FC/ST/SC connectors and various forms of fiber optic cables.
- Dustproof The dustproof design on the top of the optical fault locator for fiber optic keeps the fiber optic connector clean, which can protect the accuracy of the test result;
- Easy to carry: with a lightweight and compact pen design. It is easy to carry (even put directly into the bag), easy to test on site, has a low battery warning and has remote sensing.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
50 MW FTTH Fibre Optic Tester, Visual Fault 50 km Locator Fibre Optic Cable Tester Fibre Optical, VFL Fibre Optic Tester, Fibre Optic Cable Tester with Singlemode 9/125 um FC Male to LC Female Adapter red
50 MW FTTH Fibre Optic Tester, Visual Fault 50 km Locator Fibre Optic Cable Tester Fibre Optical, VFL Fibre Optic Tester, Fibre Optic Cable Tester with Singlemode 9/125 um FC Male to LC Female Adapter red
50 MW FTTH Fibre Optic Tester, Visual Fault 50 km Locator Fibre Optic Cable Tester Fibre Optical, VFL Fibre Optic Tester, Fibre Optic Cable Tester with Singlemode 9/125 um FC Male to LC Female Adapter
Product details: Output wavelength: 650nm ± 20nm Output power: 50mW Detection distance: 50 km. Fiber Type: Single Mode Connector: universal adapter 2.5 mm (FC/SC/ST). Operating model: CW and pulse available. Power supply: 2 x AA batteries (not included). Operating temperature: -10 to +50 °C, <90% RH. Storage temperature: 20 - +60 °C, <90 % RH. Package includes: 1 x individual safety strap. 1 x visual error locator. 1 x FC to LC adapter. VFL usage methodVFL is very easy to use. The steps to use a VFL are as follows: Step 1: Remove the plastic connector covers from both ends of the test fiber cable. Step 2: Connect the optical fiber cable troubleshooter to one end of the fiber. Press the test button and watch if light emerges from the other end of the fibre. This gives a simple indication of the continuity of the fiber optic connection. Step 3: Repeat with several other fibers. Pay attention to light emerging from a faulty splice point. This can be an easy way to visually troubleshoot bad splicing or connections. Step 4: Disconnect all devices, put the plastic covers back on the connector ends and return everything to the state it was in before starting the practical exercise so that the next group can complete the hands-on exercise completely. Instructions for using a VFL: 1. Never look directly into the output of the VFL. 2. Cover the output of the VFL with the dust cap when the VFL is not in use. 3. Not recommended for use with dark colored or armoured cables.
Product Features
- Function The optical fiber visual fault locator can detect fiber connectivity and locate fiber faults such as fiber breaks or curvatures. In addition, it has features such as error detection in the OTDR blind zone, end-to-end fiber identification, and mechanical continuous point optimization.
- LONG RANGE TEST The 50MW fiber optic fault detector has strong source output power, which can detect faults in fiber optic patch cord within 50 kilometers in fiber optic cable in both continuous line and pulse mode.
- 2.5mm Universal Connector This visual fault locator is designed for a 2.5mm universal fiber interface and is compatible with a variety of FC/ST/SC connectors and various forms of fiber optic cables.
- Dustproof The dustproof design on the top of the optical fault locator for fiber optic keeps the fiber optic connector clean, which can protect the accuracy of the test result;
- Easy to carry: with a lightweight and compact pen design. It is easy to carry (even put directly into the bag), easy to test on site, has a low battery warning and has remote sensing.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
50 MW FTTH Fibre Optic Tester, Visual Fault 50 km Locator Fibre Optic Cable Tester Fibre Optical, VFL Fibre Optic Tester, Fibre Optic Cable Tester with Singlemode 9/125 um FC Male to LC Female Adapter
Product details: Output wavelength: 650nm ± 20nm Output power: 50mW Detection distance: 50 km. Fiber Type: Single Mode Connector: universal adapter 2.5 mm (FC/SC/ST). Operating model: CW and pulse available. Power supply: 2 x AA batteries (not included). Operating temperature: -10 to +50 °C, <90% RH. Storage temperature: 20 - +60 °C, <90 % RH. Package includes: 1 x individual safety strap. 1 x visual error locator. 1 x FC to LC adapter. VFL usage methodVFL is very easy to use. The steps to use a VFL are as follows: Step 1: Remove the plastic connector covers from both ends of the test fiber cable. Step 2: Connect the optical fiber cable troubleshooter to one end of the fiber. Press the test button and watch if light emerges from the other end of the fibre. This gives a simple indication of the continuity of the fiber optic connection. Step 3: Repeat with several other fibers. Pay attention to light emerging from a faulty splice point. This can be an easy way to visually troubleshoot bad splicing or connections. Step 4: Disconnect all devices, put the plastic covers back on the connector ends and return everything to the state it was in before starting the practical exercise so that the next group can complete the hands-on exercise completely. Instructions for using a VFL: 1. Never look directly into the output of the VFL. 2. Cover the output of the VFL with the dust cap when the VFL is not in use. 3. Not recommended for use with dark colored or armoured cables.
Product Features
- Function The optical fiber visual fault locator can detect fiber connectivity and locate fiber faults such as fiber breaks or curvatures. In addition, it has features such as error detection in the OTDR blind zone, end-to-end fiber identification, and mechanical continuous point optimization.
- LONG RANGE TEST The 50MW fiber optic fault detector has strong source output power, which can detect faults in fiber optic patch cord within 50 kilometers in fiber optic cable in both continuous line and pulse mode.
- 2.5mm Universal Connector This visual fault locator is designed for a 2.5mm universal fiber interface and is compatible with a variety of FC/ST/SC connectors and various forms of fiber optic cables.
- Dustproof The dustproof design on the top of the optical fault locator for fiber optic keeps the fiber optic connector clean, which can protect the accuracy of the test result;
- Easy to carry: with a lightweight and compact pen design. It is easy to carry (even put directly into the bag), easy to test on site, has a low battery warning and has remote sensing.
